EM400-24-112 is a high-performance round electromagnet designed to meet the demanding requirements of mechanical and electrical engineering applications. Its 4-inch diameter produces an extremely strong magnetic field when supplied with 24 volts DC, capable of holding up to 480 lbs. The product is manufactured with precision and attention to detail, ensuring reliable and consistent performance. Its applications include but are not limited to lifting equipment, sorting machinery, and magnetic clamping systems. EM400-24-112 is an excellent choice for engineering projects requiring a dependable and efficient electromagnet for heavy-duty operations.
EM400-220-112 - Round Electromagnet 4 inch Dia. 220 volts DC - Holding 480 lbs.
$148.50
EM400-12-112 - Round Electromagnet 4 inch Dia. 12 volts DC - Holding 480 lbs.
$138.74
EM400-24-112 – Round Electromagnet 4 inch Dia. 24 volts DC – Holding 480 lbs.
$138.74
1 in stock (can be backordered)

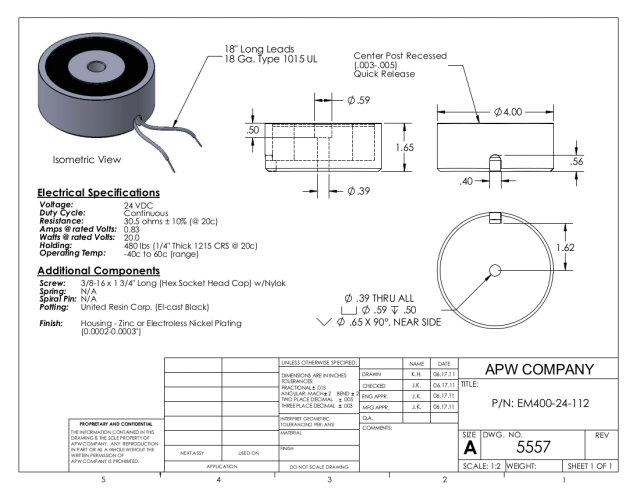

PRODUCT FILES: PDF SPECIFICATION 3-D FILE
Additional information
| Weight | 5 lbs |
|---|---|
| Dimensions | 4 × 4 × 1.65 in |
| Holding Force (Lbs.) (2) | 480 |
| Voltage | 24 |
| Current | DC |
| Duty | Continuous |
| Amps | 0.83 |
| Quick Release | Yes |
| Encapsulation | Yes |
| Anti-Rotation Pin | No |
| Mounting Option | Through-Hole w/ Shoulder Bolt |
| Bolt Desc. or Thread | 3/8-16 x 1 3/4 |
| Mounting Screw Supplied (2) | Yes |
| Lead Wire Type (3) | UL |
| Lead Wire Ga. | 18 |
| Lead Wire Length (in.) | 18 |
| High Temperature (500 f) | No |
| Magnetic Stainless (430FR) | No |
| Outer Diameter (in.) | 4 |
| Height (in.) 3 | 1.65 |
