EM400-220-112 is a high-performance round electromagnet engineered to meet the exacting requirements of mechanical and electrical engineering applications. Its 4-inch diameter produces a powerful magnetic field when supplied with 220 volts DC, capable of holding up to 480 lbs. This product is manufactured with meticulous attention to detail, ensuring consistent and reliable performance. Its applications include but are not limited to lifting equipment, sorting machinery, and magnetic clamping systems. EEM400-220-112 is a dependable choice for engineering projects requiring a high-quality and efficient electromagnet for heavy-duty operations at high voltage levels.
EM400-115ac-112 - Round Electromagnet 4 inch Dia. 115 volts AC - Holding 480 lbs.
$146.15
EM400-24-112 - Round Electromagnet 4 inch Dia. 24 volts DC - Holding 480 lbs.
$138.74
EM400-220-112 – Round Electromagnet 4 inch Dia. 220 volts DC – Holding 480 lbs.
$148.50
Available on backorder

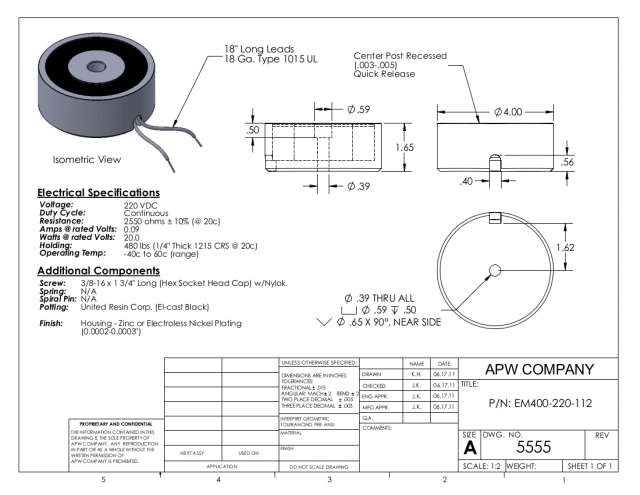

PRODUCT FILES: PDF SPECIFICATION 3-D FILE
Additional information
| Weight | 5 lbs |
|---|---|
| Dimensions | 4 × 4 × 1.65 in |
| Holding Force (Lbs.) (2) | 480 |
| Voltage | 220 |
| Current | DC |
| Duty | Continuous |
| Amps | 0.09 |
| Quick Release | Yes |
| Encapsulation | Yes |
| Anti-Rotation Pin | No |
| Mounting Option | Through-Hole w/ Shoulder Bolt |
| Bolt Desc. or Thread | 3/8-16 x 1 3/4 |
| Mounting Screw Supplied (2) | Yes |
| Lead Wire Type (3) | UL |
| Lead Wire Ga. | 18 |
| Lead Wire Length (in.) | 18 |
| High Temperature (500 f) | No |
| Magnetic Stainless (430FR) | No |
| Outer Diameter (in.) | 4 |
| Height (in.) 3 | 1.65 |
