EM400-12-112 is a premium-quality round electromagnet that meets the rigorous requirements of mechanical and electrical engineering applications. With a diameter of 4 inches, it is capable of producing an extremely strong magnetic field when supplied with 12 volts DC, holding up to 480 lbs. The product is manufactured to exacting standards, ensuring consistent and reliable performance. Typical applications include but are not limited to lifting equipment, sorting machinery, and magnetic clamping systems. EM400-12-112 is an ideal choice for engineering projects that require a robust and dependable electromagnet to support heavy-duty operations.
EM400-24-112 - Round Electromagnet 4 inch Dia. 24 volts DC - Holding 480 lbs.
$138.74
EM400-6-112 – Round Electromagnet 4 inch Dia. 6 volts DC – Holding 480 lbs.
$138.74
EM400-12-112 – Round Electromagnet 4 inch Dia. 12 volts DC – Holding 480 lbs.
$138.74
Available on backorder

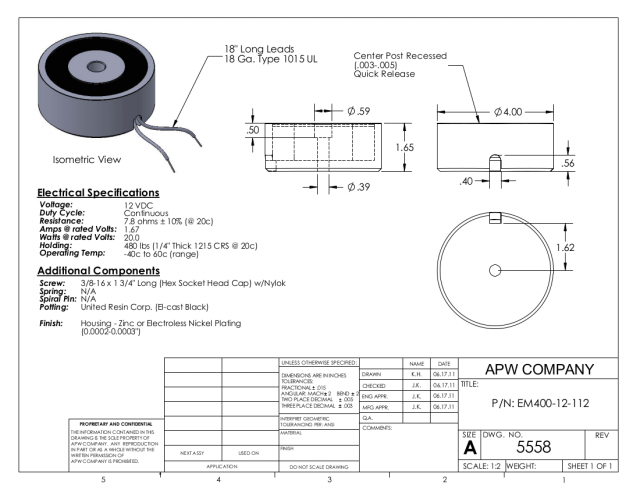

PRODUCT FILES: PDF SPECIFICATION 3-D FILE
Additional information
| Weight | 5 lbs |
|---|---|
| Dimensions | 4 × 4 × 1.65 in |
| Holding Force (Lbs.) (2) | 480 |
| Voltage | 12 |
| Current | DC |
| Duty | Continuous |
| Amps | 1.66 |
| Quick Release | Yes |
| Encapsulation | Yes |
| Anti-Rotation Pin | No |
| Mounting Option | Through-Hole w/ Shoulder Bolt |
| Bolt Desc. or Thread | 3/8-16 x 1 3/4 |
| Mounting Screw Supplied (2) | Yes |
| Lead Wire Type (3) | UL |
| Lead Wire Ga. | 18 |
| Lead Wire Length (in.) | 18 |
| High Temperature (500 f) | No |
| Magnetic Stainless (430FR) | No |
| Outer Diameter (in.) | 4 |
| Height (in.) 3 | 1.65 |
