EM400-6-112 is a high-quality round electromagnet engineered to meet the rigorous demands of mechanical and electrical engineering applications. It produces an extremely strong magnetic field when energized with 6 volts DC, capable of holding up to an impressive 480 lbs. With a diameter of 4 inches, it is suitable for a range of applications requiring a large holding capacity. This electromagnet is manufactured to the highest standards, ensuring consistent and reliable performance. Typical applications include but are not limited to lifting equipment, sorting machinery, and magnetic clamping systems. EM400-6-112 is a dependable choice for any engineering project requiring a powerful and efficient electromagnet.
EM400-12-112 - Round Electromagnet 4 inch Dia. 12 volts DC - Holding 480 lbs.
$138.74
EM300-12-222 - Round Electromagnet 3 inch Dia. 12 volts DC - Holding 400 lbs.
$80.74

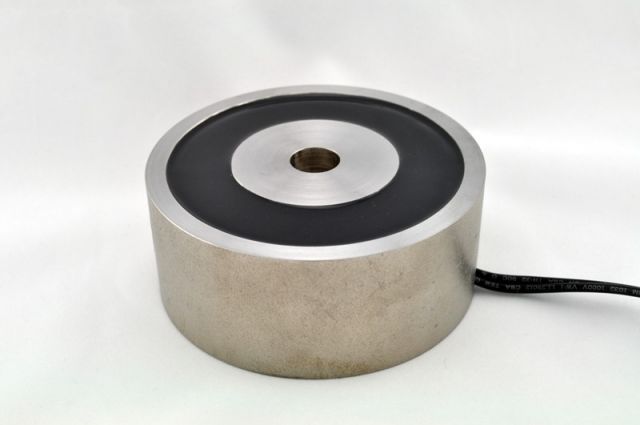

EM400-6-112 – Round Electromagnet 4 inch Dia. 6 volts DC – Holding 480 lbs.
$138.74
Available on backorder

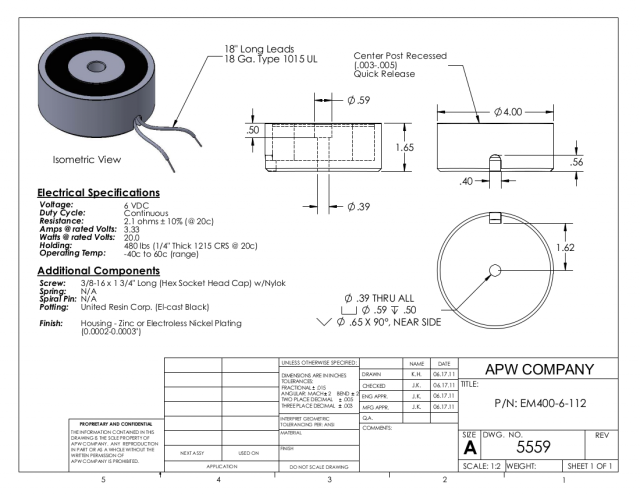

PRODUCT FILES: PDF SPECIFICATION 3-D FILE
** Backordered items typically ship in 3-5 business days. You will be contacted with a delivery date for any backordered items.
Additional information
| Weight | 5 lbs |
|---|---|
| Dimensions | 4 × 4 × 1.65 in |
| Holding Force (Lbs.) (2) | 480 |
| Voltage | 6 |
| Current | DC |
| Duty | Continuous |
| Amps | 3.33 |
| Quick Release | Yes |
| Encapsulation | Yes |
| Anti-Rotation Pin | No |
| Mounting Option | Through-Hole w/ Shoulder Bolt |
| Bolt Desc. or Thread | 3/8-16 x 1 3/4 |
| Mounting Screw Supplied (2) | Yes |
| Lead Wire Type (3) | UL |
| Lead Wire Ga. | 18 |
| Lead Wire Length (in.) | 18 |
| High Temperature (500 f) | No |
| Magnetic Stainless (430FR) | No |
| Outer Diameter (in.) | 4 |
| Height (in.) 3 | 1.65 |
