EM300-115AC-122 is a high-quality, precision-made round electromagnet with a 3 inch diameter, designed to hold a maximum of 300 lbs. The unit operates at 115 volts AC and is suitable for a variety of industrial applications. Electromagnets like this are commonly used in assembly lines, robotic machinery, and material handling systems where powerful magnetic force is required. The product is built to the highest industry standards, ensuring optimal performance and reliability in demanding environments.
EM300-6-222 - Round Electromagnet 3 inch Dia. 6 volts DC - Holding 400 lbs.
$80.74
EM300-24AC-122 - Round Electromagnet 3 inch Dia. 24 volts AC - Holding 300 lbs.
$90.42
EM300-115AC-122 – Round Electromagnet 3 inch Dia. 115 volts AC – Holding 300 lbs.
$90.42
Available on backorder

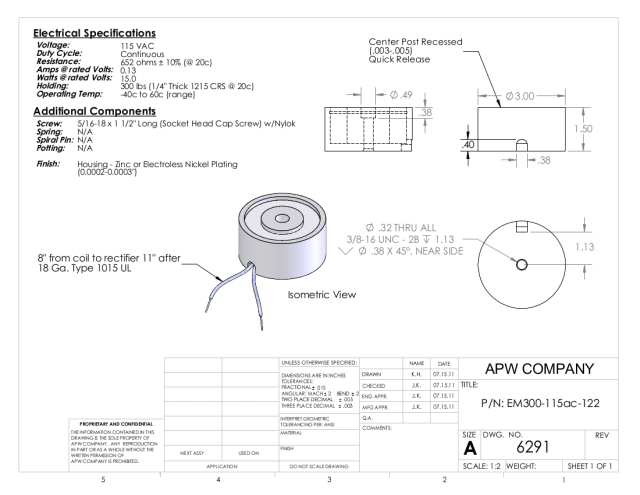

PRODUCT FILES: PDF SPECIFICATION 3-D FILE
Additional information
| Weight | 2.5 lbs |
|---|---|
| Dimensions | 3 × 3 × 1.5 in |
| Holding Force (Lbs.) (2) | 300 |
| Voltage | 115 |
| Current | AC |
| Duty | Continuous |
| Amps | 0.13 |
| Quick Release | Yes |
| Encapsulation | No |
| Anti-Rotation Pin | No |
| Mounting Option | Through-Hole w/ Shoulder Bolt |
| Bolt Desc. or Thread | 5/16-18 x 1 1/2 |
| Mounting Screw Supplied (2) | Yes |
| Lead Wire Type (3) | UL |
| Lead Wire Ga. | 18 |
| Lead Wire Length (in.) | 18 |
| High Temperature (500 f) | No |
| Magnetic Stainless (430FR) | No |
| Outer Diameter (in.) | 3 |
| Height (in.) 3 | 1.5 |
