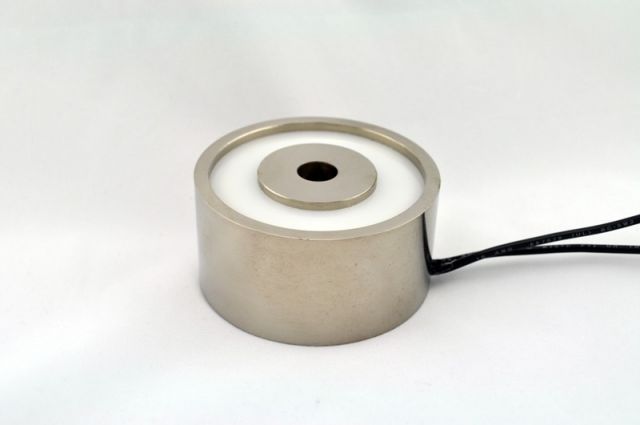

The EM300-6-222 is a high-powered round electromagnet with a 3 inch diameter and a holding capacity of 400 lbs. It is designed for use with 6 volts DC and is a high-quality, precision-made product. This electromagnet has numerous applications, such as in automated sorting and assembly systems, magnetic lifting and handling, and industrial machinery. With its robust construction and powerful magnetic field, the EM300-6-222 is ideal for applications requiring strong and reliable magnetic holding force.
EM300-24-222 - Round Electromagnet 3 inch Dia. 24 volts DC - Holding 400 lbs.
$80.74
EM300-115AC-122 - Round Electromagnet 3 inch Dia. 115 volts AC - Holding 300 lbs.
$90.42
EM300-6-222 – Round Electromagnet 3 inch Dia. 6 volts DC – Holding 400 lbs.
$80.74
Available on backorder

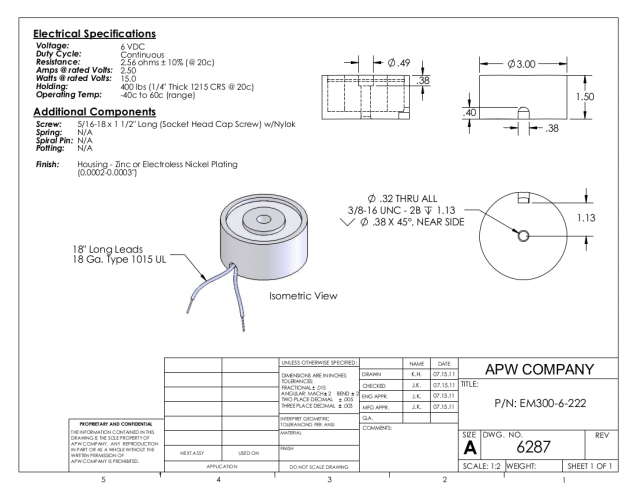

PRODUCT FILES: PDF SPECIFICATION 3-D FILE
Additional information
| Weight | 2.5 lbs |
|---|---|
| Dimensions | 3 × 3 × 1.5 in |
| Holding Force (Lbs.) (2) | 400 |
| Voltage | 6 |
| Current | DC |
| Duty | Continuous |
| Amps | 2.5 |
| Quick Release | No |
| Encapsulation | No |
| Anti-Rotation Pin | No |
| Mounting Option | Through-Hole w/ Shoulder Bolt |
| Bolt Desc. or Thread | 5/16-18 x 1 1/2 |
| Mounting Screw Supplied (2) | Yes |
| Lead Wire Type (3) | UL |
| Lead Wire Ga. | 18 |
| Lead Wire Length (in.) | 18 |
| High Temperature (500 f) | No |
| Magnetic Stainless (430FR) | No |
| Outer Diameter (in.) | 3 |
| Height (in.) 3 | 1.5 |
