The EM200-6-222-A Round Electromagnet is a high-quality, precision-made product designed for use in various applications where electromagnets are required to hold heavy loads of up to 140 lbs. With a 2 inch diameter, this DC-powered electromagnet is capable of holding the load securely in place. Mechanical and electrical engineers can trust the reliability of this product in a wide range of applications, including manufacturing equipment, robotics, and transportation. The low voltage requirement of 6 volts DC makes it suitable for use in low power applications.
EM200-12-222-A - Round Electromagnet 2 inch Dia. 12 VDC - Holding 140 lbs.
$41.61
EM200-115ac-122-A - Round Electromagnet 2 inch Dia. 115 volts AC - Holding 105 lbs.
$47.86
EM200-6-222-A – Round Electromagnet 2 inch Dia. 6 volts DC – Holding 140 lbs.
$41.61
3 in stock (can be backordered)

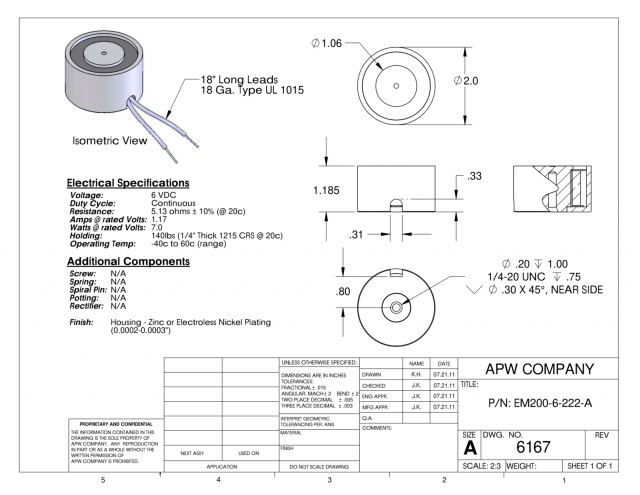

PRODUCT FILES: PDF SPECIFICATION 3-D FILE
Additional information
| Weight | 0.71 lbs |
|---|---|
| Dimensions | 2 × 2 × 1.18 in |
| Holding Force (Lbs.) (2) | 140 |
| Voltage | 6 |
| Current | DC |
| Duty | Continuous |
| Amps | 1.16 |
| Quick Release | No |
| Encapsulation | No |
| Anti-Rotation Pin | No |
| Mounting Option | Tapped Rear Threaded |
| Bolt Desc. or Thread | Female 1/4-20 |
| Mounting Screw Supplied (2) | No |
| Lead Wire Type (3) | UL |
| Lead Wire Ga. | 18 |
| Lead Wire Length (in.) | 18 |
| High Temperature (500 f) | No |
| Magnetic Stainless (430FR) | No |
| Outer Diameter (in.) | 2 |
| Height (in.) 3 | 1.18 |
