The EM200-115ac-122-A Round Electromagnet is a high-quality precision made product with a 2 inch diameter and a holding capacity of 105 lbs. It operates at 115 volts AC and is suitable for a variety of applications, including robotics, automation, material handling, and medical devices. This electromagnet is designed for optimal performance and reliability and is built to withstand harsh environments. Its compact size and high holding force make it an ideal solution for applications that require strong magnetic holding capabilities in a small space.
EM200-6-222-A - Round Electromagnet 2 inch Dia. 6 volts DC - Holding 140 lbs.
$41.61
EM200-110-122-A - Round Electromagnet 2 inch Dia. 110 volts DC - Holding 105 lbs.
$62.89
EM200-115ac-122-A – Round Electromagnet 2 inch Dia. 115 volts AC – Holding 105 lbs.
$47.86
Available on backorder

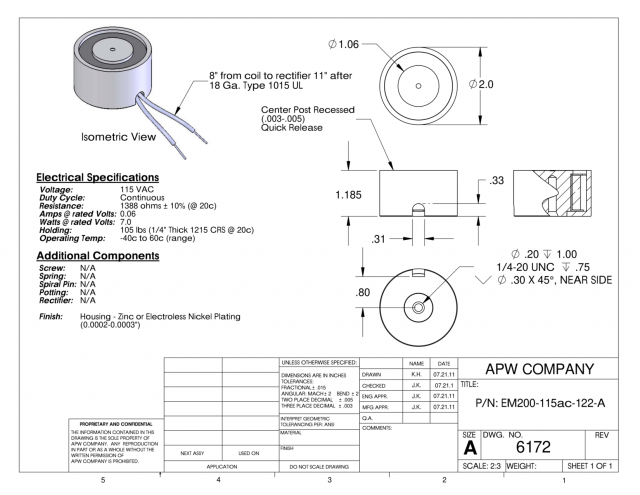

PRODUCT FILES: PDF SPECIFICATION 3-D FILE
Additional information
| Weight | 0.71 lbs |
|---|---|
| Dimensions | 2 × 2 × 1.18 in |
| Holding Force (Lbs.) (2) | 105 |
| Voltage | 115 |
| Current | AC |
| Duty | Continuous |
| Amps | 0.06 |
| Quick Release | Yes |
| Encapsulation | No |
| Anti-Rotation Pin | No |
| Mounting Option | Tapped Rear Threaded |
| Bolt Desc. or Thread | Female 1/4-20 |
| Mounting Screw Supplied (2) | No |
| Lead Wire Type (3) | UL |
| Lead Wire Ga. | 18 |
| Lead Wire Length (in.) | 18 |
| High Temperature (500 f) | No |
| Magnetic Stainless (430FR) | No |
| Outer Diameter (in.) | 2 |
| Height (in.) 3 | 1.18 |
