The EM200-110-122-A is a high-quality precision-made round electromagnet with a 2 inch diameter that can hold up to 105 lbs. of weight. It operates on 110 volts DC and is designed to be used in various mechanical and electrical applications. The electromagnet can be used to lift and move heavy metal objects, in security systems to control access to areas, and in automated machinery for assembly or sorting tasks. Its sturdy construction and reliable performance make it an excellent choice for professionals in the mechanical and electrical engineering fields.
EM200-115ac-122-A - Round Electromagnet 2 inch Dia. 115 volts AC - Holding 105 lbs.
$47.86
EM200-24-122-A - Round Electromagnet 2 inch Dia. 24 volts DC - Holding 105 lbs.
$41.61
EM200-110-122-A – Round Electromagnet 2 inch Dia. 110 volts DC – Holding 105 lbs.
$62.89
2 in stock (can be backordered)

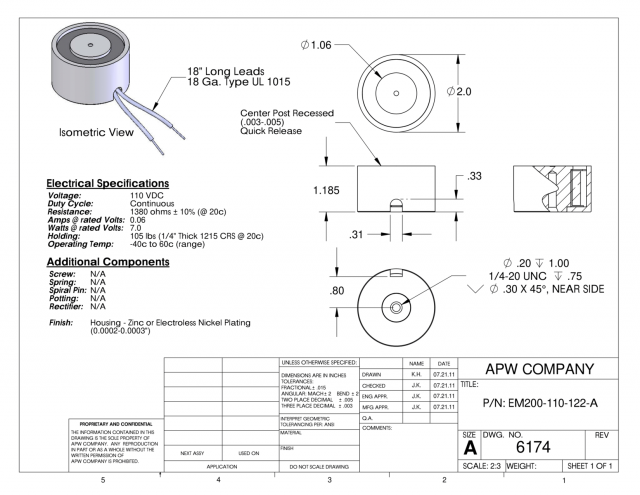

PRODUCT FILES: PDF SPECIFICATION 3-D FILE
Additional information
| Weight | 0.71 lbs |
|---|---|
| Dimensions | 2 × 2 × 1.18 in |
| Holding Force (Lbs.) (2) | 105 |
| Voltage | 110 |
| Current | DC |
| Duty | Continuous |
| Amps | 0.06 |
| Quick Release | Yes |
| Encapsulation | No |
| Anti-Rotation Pin | No |
| Mounting Option | Tapped Rear Threaded |
| Bolt Desc. or Thread | Female 1/4-20 |
| Mounting Screw Supplied (2) | No |
| Lead Wire Type (3) | UL |
| Lead Wire Ga. | 18 |
| Lead Wire Length (in.) | 18 |
| High Temperature (500 f) | No |
| Magnetic Stainless (430FR) | No |
| Outer Diameter (in.) | 2 |
| Height (in.) 3 | 1.18 |
