The EM200-12-122 is a high-quality, precision-made round electromagnet with a diameter of 2 inches and a holding capacity of 105 lbs. It operates on a 12-volt DC power supply and is designed for use in a wide range of applications, such as lifting and moving heavy loads, sorting and separating materials, and controlling the motion of mechanical components. Its rugged construction and reliable performance make it ideal for use in demanding industrial and commercial environments.
EM200-24-122 - Round Electromagnet 2 inch Dia. 24 volts DC - Holding 105 lbs.
$41.61
EM200-115ac-222-A - Round Electromagnet 2 inch Dia. 115 volts AC - Holding 140 lbs.
$61.72
EM200-12-122 – Round Electromagnet 2 inch Dia. 12 volts DC – Holding 105 lbs.
$41.61
7 in stock (can be backordered)

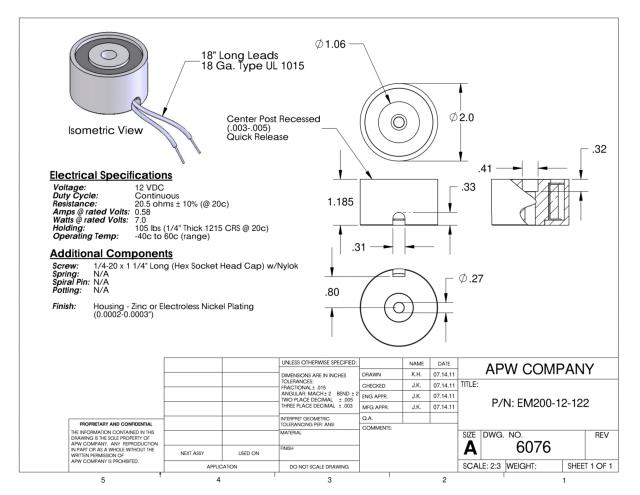

PRODUCT FILES: PDF SPECIFICATION 3-D FILE
Additional information
| Weight | 0.71 lbs |
|---|---|
| Dimensions | 2 × 2 × 1.18 in |
| Holding Force (Lbs.) (2) | 105 |
| Voltage | 12 |
| Current | DC |
| Duty | Continuous |
| Amps | 0.58 |
| Quick Release | Yes |
| Encapsulation | No |
| Anti-Rotation Pin | No |
| Mounting Option | Through-Hole w/ Shoulder Bolt |
| Bolt Desc. or Thread | 1/4-20 x 1 1/4 |
| Mounting Screw Supplied (2) | Yes |
| Lead Wire Type (3) | UL |
| Lead Wire Ga. | 18 |
| Lead Wire Length (in.) | 18 |
| High Temperature (500 f) | No |
| Magnetic Stainless (430FR) | No |
| Outer Diameter (in.) | 2 |
| Height (in.) 3 | 1.18 |
