The EM200-24-122 Round Electromagnet is a high-quality, precision-made product that measures 2 inches in diameter and can hold up to 105 lbs. of weight. It operates on 24 volts DC and is designed to withstand harsh environments. Applications where electromagnets are used include material handling, robotics, magnetic separation, and locking mechanisms. The EM200-24-122 is ideal for use in these applications due to its high holding force and reliable operation, making it a valuable component in industrial and commercial settings.
EM200-110-122 - Round Electromagnet 2 inch Dia. 110 volts DC - Holding 140 lbs.
$66.26
EM200-12-122 - Round Electromagnet 2 inch Dia. 12 volts DC - Holding 105 lbs.
$41.61
EM200-24-122 – Round Electromagnet 2 inch Dia. 24 volts DC – Holding 105 lbs.
$41.61
Available on backorder

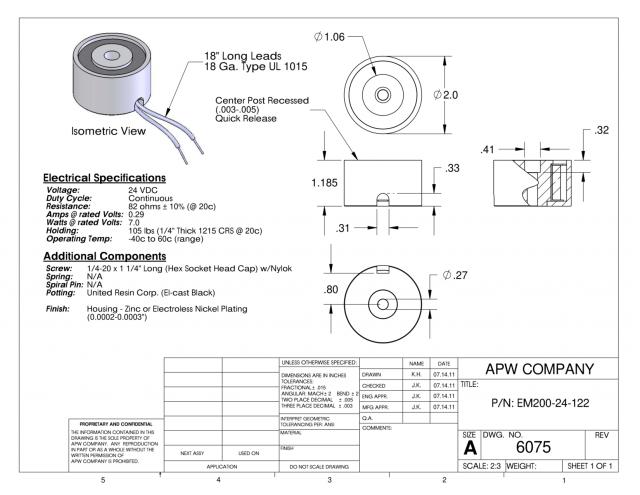

PRODUCT FILES: PDF SPECIFICATION 3-D FILE
Additional information
| Weight | 0.71 lbs |
|---|---|
| Dimensions | 2 × 2 × 1.18 in |
| Holding Force (Lbs.) (2) | 105 |
| Voltage | 24 |
| Current | DC |
| Duty | Continuous |
| Amps | 0.29 |
| Quick Release | Yes |
| Encapsulation | No |
| Anti-Rotation Pin | No |
| Mounting Option | Through-Hole w/ Shoulder Bolt |
| Bolt Desc. or Thread | 1/4-20 x 1 1/4 |
| Mounting Screw Supplied (2) | Yes |
| Lead Wire Type (3) | UL |
| Lead Wire Ga. | 18 |
| Lead Wire Length (in.) | 18 |
| High Temperature (500 f) | No |
| Magnetic Stainless (430FR) | No |
| Outer Diameter (in.) | 2 |
| Height (in.) 3 | 1.18 |
