The EM200-115ac-222-A is a high quality, precision-made round electromagnet designed for mechanical and electrical engineers. This model has a holding force of 140 lbs, is 2 inches in diameter and operates at 115 volts AC. The product is suitable for a range of applications where electromagnets are used such as material handling, automation and robotics. The product is highly reliable and manufactured with strict quality control to ensure consistent performance. The EM200-115ac-222-A is an excellent choice for those seeking a durable and high-performing electromagnet.
EM200-12-122 - Round Electromagnet 2 inch Dia. 12 volts DC - Holding 105 lbs.
$41.61
EM200-24-222-A - Round Electromagnet 2 inch Dia. 24 VDC - Holding 140 lbs.
$41.61
EM200-115ac-222-A – Round Electromagnet 2 inch Dia. 115 volts AC – Holding 140 lbs.
$61.72
Available on backorder

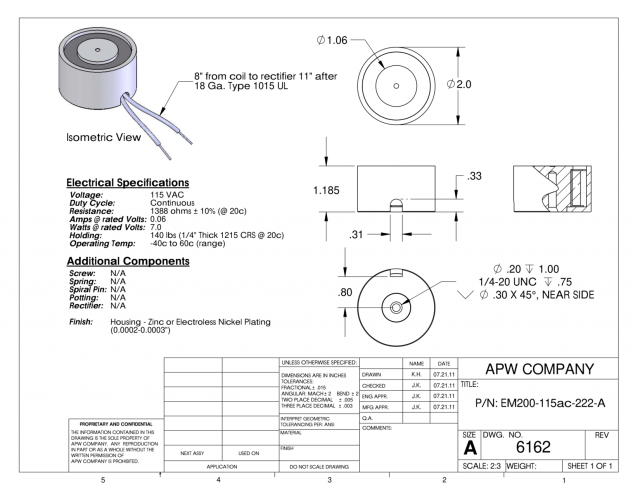

PRODUCT FILES: PDF SPECIFICATION 3-D FILE
Additional information
| Weight | 0.71 lbs |
|---|---|
| Dimensions | 2 × 2 × 1.18 in |
| Holding Force (Lbs.) (2) | 140 |
| Voltage | 115 |
| Current | AC |
| Duty | Continuous |
| Amps | 0.06 |
| Quick Release | No |
| Encapsulation | No |
| Anti-Rotation Pin | No |
| Mounting Option | Tapped Rear Threaded |
| Bolt Desc. or Thread | Female 1/4-20 |
| Mounting Screw Supplied (2) | No |
| Lead Wire Type (3) | UL |
| Lead Wire Ga. | 18 |
| Lead Wire Length (in.) | 18 |
| High Temperature (500 f) | No |
| Magnetic Stainless (430FR) | No |
| Outer Diameter (in.) | 2 |
| Height (in.) 3 | 1.18 |
