The EM150-12-112 is a precision-made, high-quality round electromagnet with a diameter of 1.5 inches, designed to hold up to 66 lbs. The product is powered by 24 volts DC and is built with the highest engineering standards to ensure optimal performance and reliability. The electromagnet finds use in various applications where strong holding force is required, such as magnetic locks, vending machines, and industrial automation. With its rugged construction and outstanding holding strength, the EM150-12-112 is the ideal solution for a wide range of demanding electromagnet applications.
EM150-24-112 - Round Electromagnet 1.5 inch Dia. 24 volts DC - Holding 66 lbs.
$37.32
EM150-6-112 - Round Electromagnet 1.5 inch Dia. 6 volts DC - Holding 66 lbs.
$37.32
EM150-12-112 – Round Electromagnet 1.5 inch Dia. 24 volts DC – Holding 66 lbs.
$37.32
Available on backorder

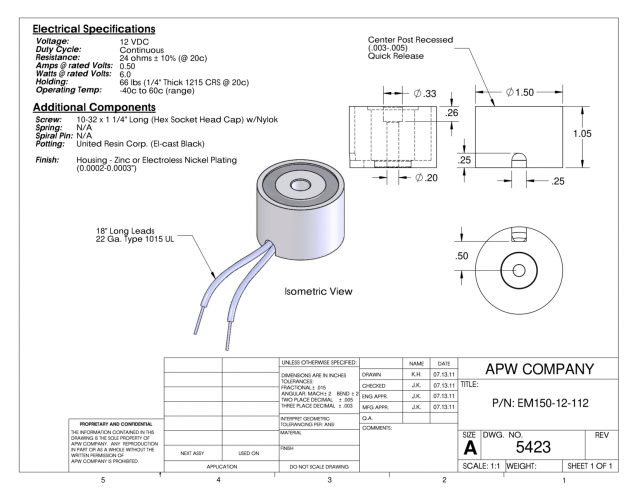

PRODUCT FILES: PDF SPECIFICATION
Additional information
| Weight | 0.4 lbs |
|---|---|
| Dimensions | 1.5 × 1.5 × 1.05 in |
| Holding Force (Lbs.) (2) | 66 |
| Voltage | 12 |
| Current | DC |
| Duty | Continuous |
| Amps | 0.5 |
| Quick Release | Yes |
| Encapsulation | Yes |
| Anti-Rotation Pin | No |
| Mounting Option | Through-Hole w/ Shoulder Bolt |
| Bolt Desc. or Thread | 10-32 x 1 1/4 |
| Mounting Screw Supplied (2) | Yes |
| Lead Wire Type (3) | UL |
| Lead Wire Ga. | 22 |
| Lead Wire Length (in.) | 18 |
| High Temperature (500 f) | No |
| Magnetic Stainless (430FR) | No |
| Outer Diameter (in.) | 1.5 |
| Height (in.) 3 | 1.05 |
