The EM150-6-112 is a precision-made round electromagnet designed for use in mechanical and electrical systems. This high-quality product measures 1.5 inches in diameter and is rated for 6 volts DC, with a holding capacity of 66 pounds. This product can be used in a variety of applications, including robotics, automation, and manufacturing. The EM150-6-112 is a reliable and efficient solution for those in need of a powerful electromagnet for their projects.
EM150-12-112 - Round Electromagnet 1.5 inch Dia. 24 volts DC - Holding 66 lbs.
$37.32
EM150-24-221 - Round Electromagnet 1.5 inch Dia. 24 volts DC - Holding 88 lbs.
$32.53
EM150-6-112 – Round Electromagnet 1.5 inch Dia. 6 volts DC – Holding 66 lbs.
$37.32
Available on backorder

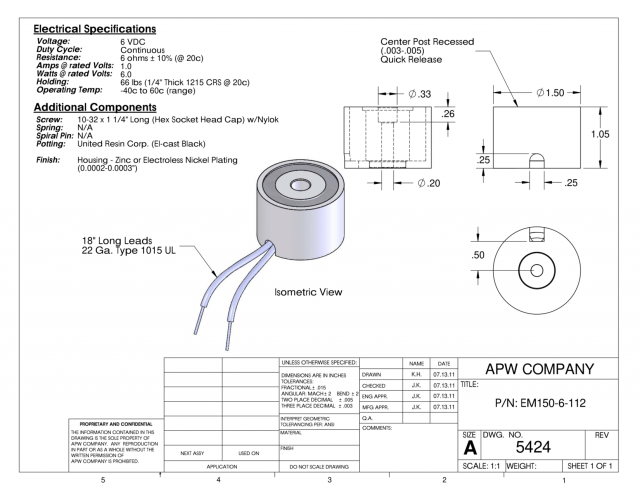

PRODUCT FILES: PDF SPECIFICATION
Additional information
| Weight | 0.4 lbs |
|---|---|
| Dimensions | 1.5 × 1.5 × 1.05 in |
| Holding Force (Lbs.) (2) | 66 |
| Voltage | 6 |
| Current | DC |
| Duty | Continuous |
| Amps | 1 |
| Quick Release | Yes |
| Encapsulation | Yes |
| Anti-Rotation Pin | No |
| Mounting Option | Through-Hole w/ Shoulder Bolt |
| Bolt Desc. or Thread | 10-32 x 1 1/4 |
| Mounting Screw Supplied (2) | Yes |
| Lead Wire Type (3) | UL |
| Lead Wire Ga. | 22 |
| Lead Wire Length (in.) | 18 |
| High Temperature (500 f) | No |
| Magnetic Stainless (430FR) | No |
| Outer Diameter (in.) | 1.5 |
| Height (in.) 3 | 1.05 |
