The EM150-24-112 is a high-quality round electromagnet with a 1.5-inch diameter, designed to hold up to 66 pounds of weight when energized by 24 volts DC. Made with precision engineering, this product is suitable for use in a range of applications where electromagnets are required, such as robotics, material handling, and automation. The electromagnet is constructed to withstand high temperatures and harsh environments, making it a reliable and durable solution. It is specifically engineered for use with 24 volts DC power supply and is an ideal component for your next project.
EM150-110ac-112 - Round Electromagnet 1.5 inch Dia. 110 volts AC - Holding 66 lbs.
$46.31
EM150-12-112 - Round Electromagnet 1.5 inch Dia. 24 volts DC - Holding 66 lbs.
$37.32
EM150-24-112 – Round Electromagnet 1.5 inch Dia. 24 volts DC – Holding 66 lbs.
$37.32
13 in stock (can be backordered)

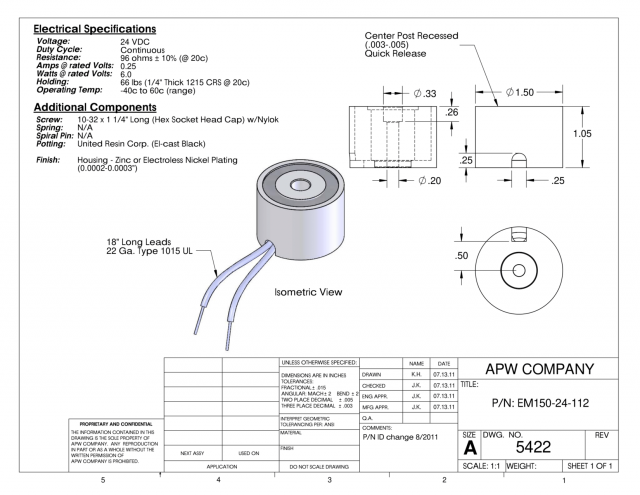

PRODUCT FILES: PDF SPECIFICATION
Additional information
| Weight | 0.4 lbs |
|---|---|
| Dimensions | 1.5 × 1.5 × 1.05 in |
| Holding Force (Lbs.) (2) | 66 |
| Voltage | 24 |
| Current | DC |
| Duty | Continuous |
| Amps | 0.25 |
| Quick Release | Yes |
| Encapsulation | Yes |
| Anti-Rotation Pin | No |
| Mounting Option | Through-Hole w/ Shoulder Bolt |
| Bolt Desc. or Thread | 10-32 x 1 1/4 |
| Mounting Screw Supplied (2) | Yes |
| Lead Wire Type (3) | UL |
| Lead Wire Ga. | 22 |
| Lead Wire Length (in.) | 18 |
| High Temperature (500 f) | No |
| Magnetic Stainless (430FR) | No |
| Outer Diameter (in.) | 1.5 |
| Height (in.) 3 | 1.05 |
