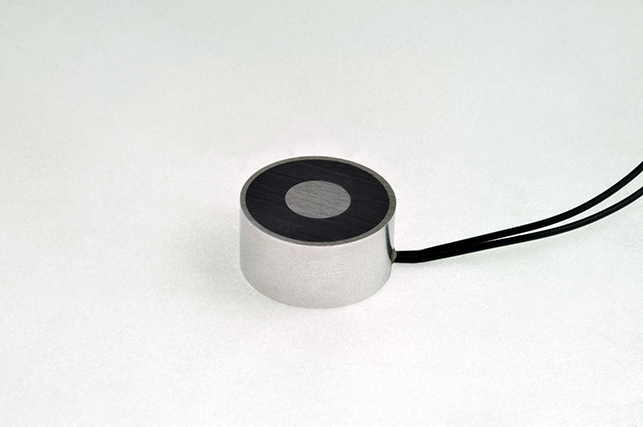

The EM075S-12-212 is a high-quality, precision-made round electromagnet with a diameter of 0.75 inches and a holding capacity of 5.5 lbs. It operates on 12 volts DC and is ideal for use in applications such as robotics, automation, and industrial machinery, where reliable holding and releasing of metallic objects is necessary. This electromagnet is engineered to provide consistent performance and durability, and is built to withstand challenging environments. Its compact size and low power consumption make it an excellent choice for applications with limited space and power constraints.
EM075-12-222 - Round Electromagnet 0.75 inch Dia. 12 volts DC - Holding 6 lbs.
$29.24
EM075-115ac-212 - Round Electromagnet 0.75 inch Dia. 115 volts AC - Holding 6 lbs.
$39.31
EM075S-12-212 – Round Electromagnet 0.75 inch Dia. 12 volts DC – Holding 5.5 lbs.
$35.37
Available on backorder

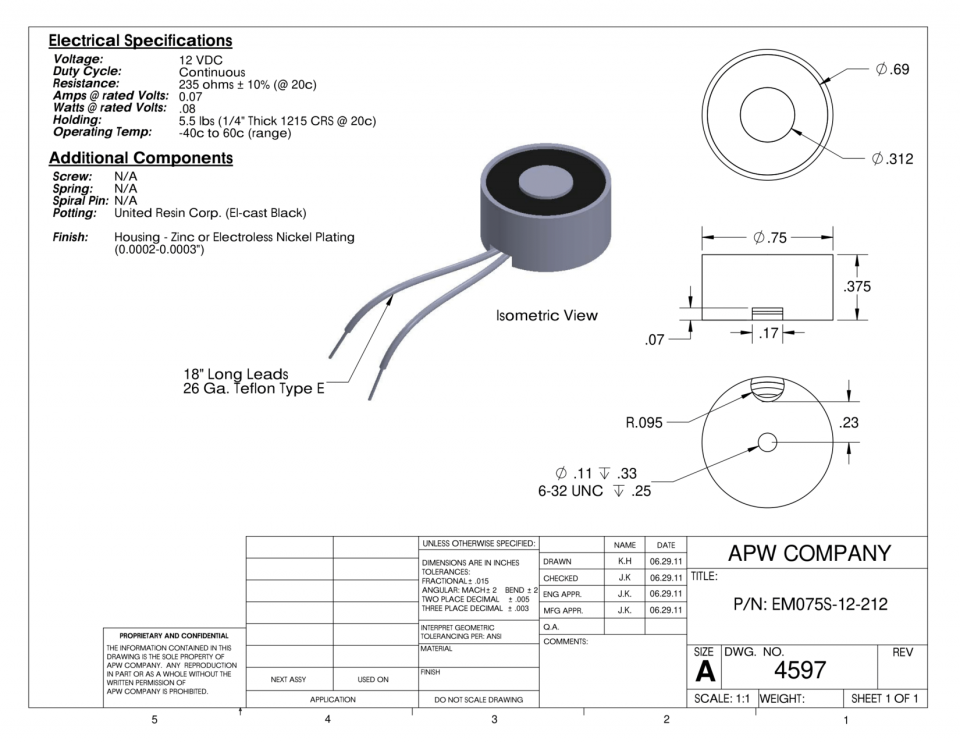

PRODUCT FILES: PDF SPECIFICATION 3-D FILE
Additional information
| Weight | 0.05 lbs |
|---|---|
| Dimensions | 0.75 × 0.75 × 0.375 in |
| Holding Force (Lbs.) (2) | 5.5 |
| Voltage | 12 |
| Current | DC |
| Duty | Continuous |
| Amps | 0.08 |
| Quick Release | No |
| Encapsulation | Yes |
| Anti-Rotation Pin | No |
| Mounting Option | Tapped Rear Threaded |
| Bolt Desc. or Thread | Female 6-32 |
| Mounting Screw Supplied (2) | No |
| Lead Wire Type (3) | TFE |
| Lead Wire Ga. | 26 |
| Lead Wire Length (in.) | 18 |
| High Temperature (500 f) | No |
| Magnetic Stainless (430FR) | No |
| Outer Diameter (in.) | 0.75 |
| Height (in.) 3 | 0.375 |
