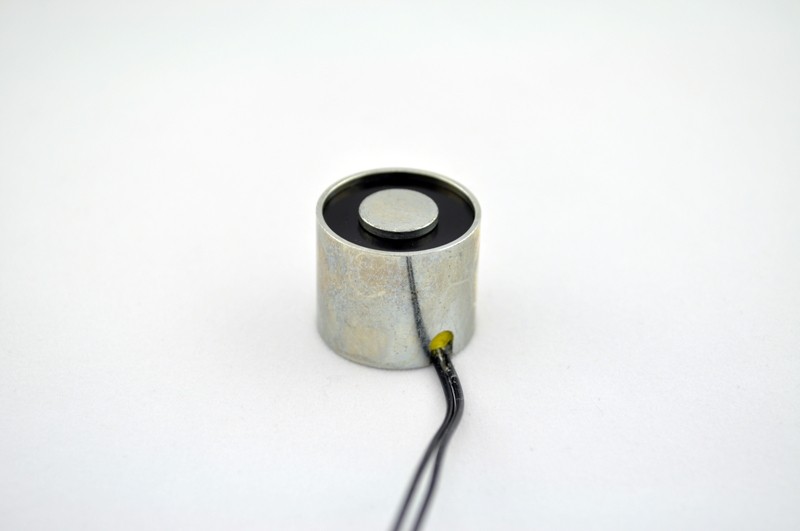

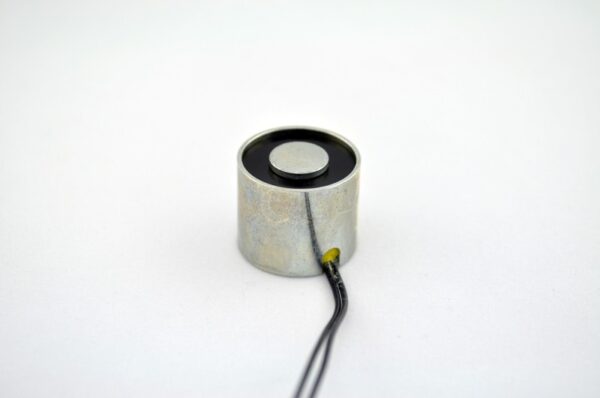

The EM075-115ac-212 is a round electromagnet with a diameter of 0.75 inches, designed to operate on 115 volts AC and capable of holding up to 6 lbs. This high-quality, precision-made product is ideal for a variety of engineering applications, such as automated manufacturing, material handling, and robotics. Its robust construction and powerful magnetic field make it suitable for use in harsh environments, and its compact size allows for easy integration into existing systems.
EM075S-12-212 - Round Electromagnet 0.75 inch Dia. 12 volts DC - Holding 5.5 lbs.
$35.37
EM075-24-212 - Round Electromagnet 0.75 inch Dia. 24 volts DC - Holding 6 lbs.
$34.09
EM075-115ac-212 – Round Electromagnet 0.75 inch Dia. 115 volts AC – Holding 6 lbs.
$39.31
10 in stock (can be backordered)

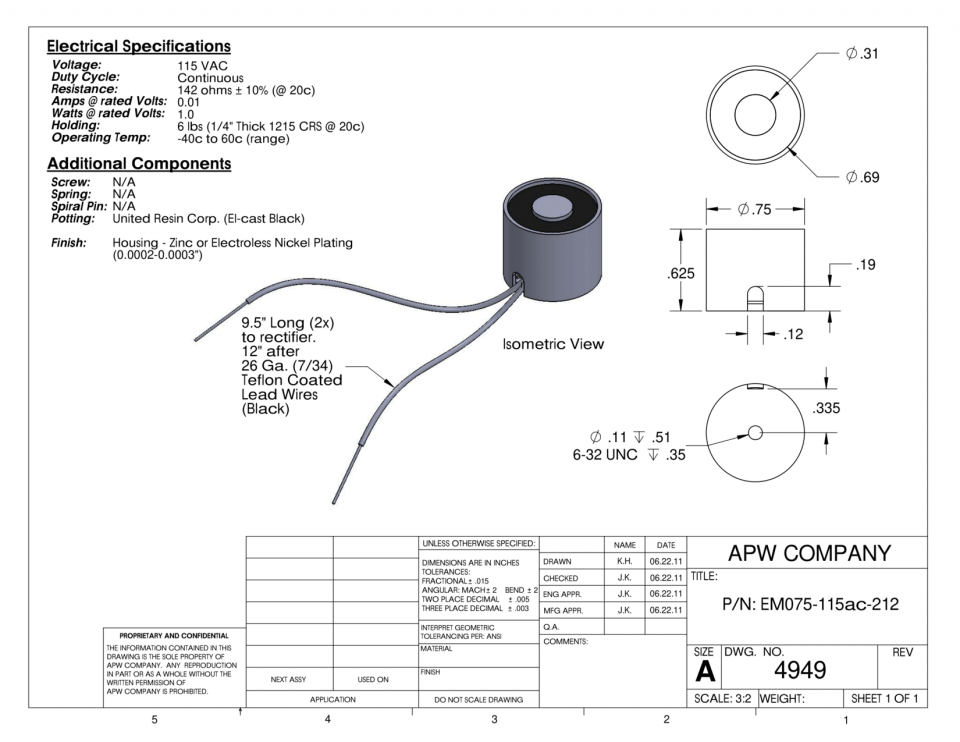

PRODUCT FILES: PDF SPECIFICATION 3-D FILE
Additional information
| Weight | 0.02 lbs |
|---|---|
| Dimensions | 0.75 × 0.75 × 0.62 in |
| Holding Force (Lbs.) (2) | 6 |
| Voltage | 115 |
| Current | AC |
| Duty | Continuous |
| Amps | 0.01 |
| Quick Release | No |
| Encapsulation | Yes |
| Anti-Rotation Pin | No |
| Mounting Option | Tapped Rear Threaded |
| Bolt Desc. or Thread | Female 6-32 |
| Mounting Screw Supplied (2) | No |
| Lead Wire Type (3) | TFE |
| Lead Wire Ga. | 26 |
| Lead Wire Length (in.) | 18 |
| High Temperature (500 f) | No |
| Magnetic Stainless (430FR) | No |
| Outer Diameter (in.) | 0.75 |
| Height (in.) 3 | 0.62 |
