The EM075-24-212 is a high-performance round electromagnet designed for use in a wide range of applications requiring a reliable and efficient holding force of 6 lbs. This precision-made electromagnet features a 0.75-inch diameter, 24 volts DC voltage rating, and a durable construction that ensures long-lasting performance in demanding environments. The EM075-24-212 is ideal for use in various industrial applications such as robotics, automation, security systems, and material handling equipment. Its compact size and powerful holding force make it a popular choice for a wide range of engineering projects.
EM075-115ac-212 - Round Electromagnet 0.75 inch Dia. 115 volts AC - Holding 6 lbs.
$39.31
EM075-12-212 - Round Electromagnet 0.75 inch Dia. 12 volts DC - Holding 6 lbs.
$34.10
EM075-24-212 – Round Electromagnet 0.75 inch Dia. 24 volts DC – Holding 6 lbs.
$34.09
109 in stock (can be backordered)

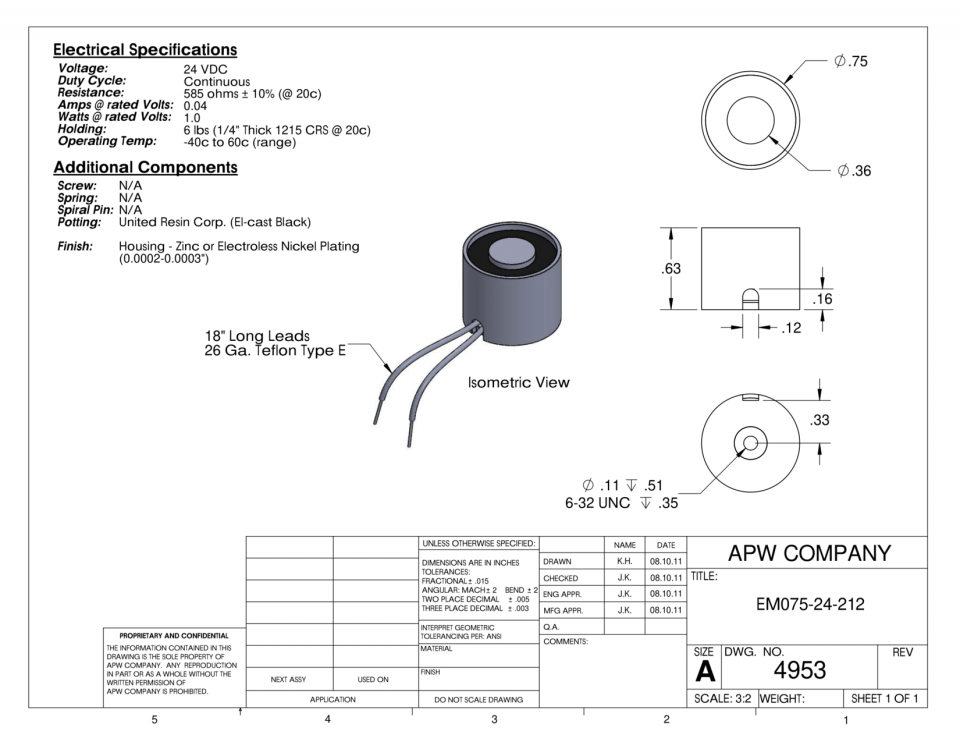

PRODUCT FILES: PDF SPECIFICATION 3-D FILE
Additional information
| Weight | 0.06 lbs |
|---|---|
| Dimensions | 0.75 × 0.75 × 0.62 in |
| Holding Force (Lbs.) (2) | 6 |
| Voltage | 24 |
| Current | DC |
| Duty | Continuous |
| Amps | 0.04 |
| Quick Release | No |
| Encapsulation | Yes |
| Anti-Rotation Pin | No |
| Mounting Option | Tapped Rear Threaded |
| Bolt Desc. or Thread | Female 6-32 |
| Mounting Screw Supplied (2) | No |
| Lead Wire Type (3) | TFE |
| Lead Wire Ga. | 26 |
| Lead Wire Length (in.) | 18 |
| High Temperature (500 f) | No |
| Magnetic Stainless (430FR) | No |
| Outer Diameter (in.) | 0.75 |
| Height (in.) 3 | 0.62 |
