The EM075-12-222 round electromagnet is a high-quality precision made product that can hold up to 6 lbs. It is commonly used in engineering applications that require the manipulation and control of magnetic fields. These include industrial machinery, robotics, and automation systems. The electromagnet’s small size and low voltage requirements make it particularly useful for compact applications where space is limited. Its durable construction and reliable performance ensure a long service life and consistent operation.
EM050-28-222-A - Round Electromagnet 0.5 inch Dia. 28 volts DC - Holding 2 lbs.
$30.92
EM075S-12-212 - Round Electromagnet 0.75 inch Dia. 12 volts DC - Holding 5.5 lbs.
$35.37
EM075-12-222 – Round Electromagnet 0.75 inch Dia. 12 volts DC – Holding 6 lbs.
$29.24
80 in stock (can be backordered)

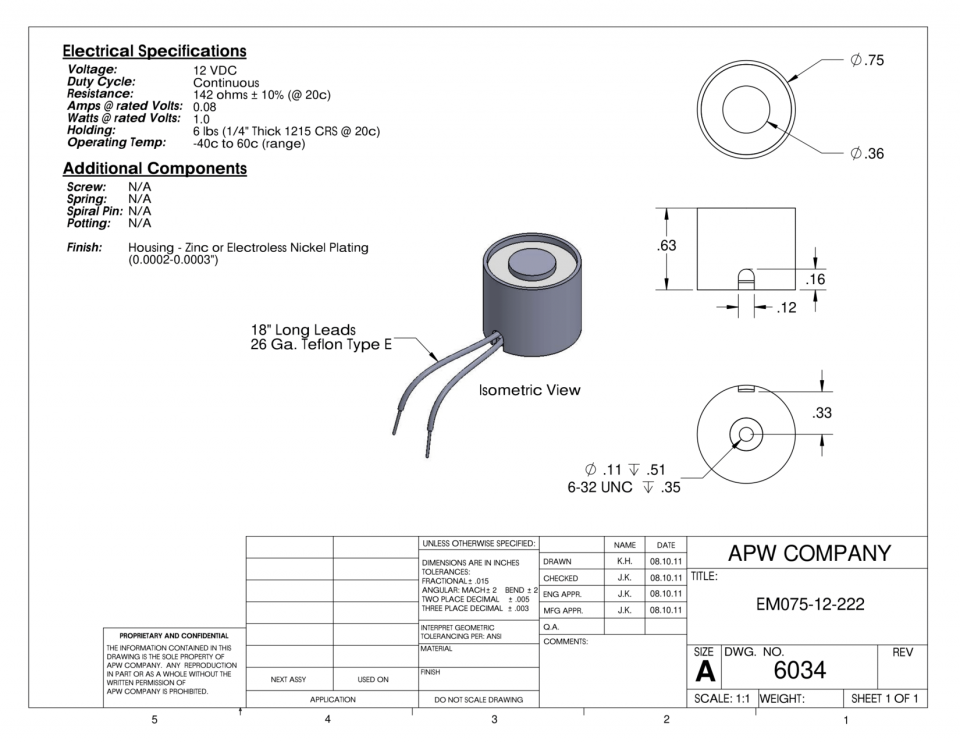

PRODUCT FILES: PDF SPECIFICATION
Additional information
| Weight | 0.06 lbs |
|---|---|
| Dimensions | 0.75 × 0.75 × 0.62 in |
| Holding Force (Lbs.) (2) | 6 |
| Voltage | 12 |
| Current | DC |
| Duty | Continuous |
| Amps | 0.08 |
| Quick Release | No |
| Encapsulation | No |
| Anti-Rotation Pin | No |
| Mounting Option | Tapped Rear Threaded |
| Bolt Desc. or Thread | Female 6-32 |
| Mounting Screw Supplied (2) | No |
| Lead Wire Type (3) | TFE |
| Lead Wire Ga. | 26 |
| Lead Wire Length (in.) | 18 |
| High Temperature (500 f) | No |
| Magnetic Stainless (430FR) | No |
| Outer Diameter (in.) | 0.75 |
| Height (in.) 3 | 0.62 |
