The EM050-28-222-A Round Electromagnet is a high-quality precision-made product designed for a range of applications where a reliable and powerful holding force of 2 lbs. is required. The 0.5 inch diameter electromagnet operates on 28 volts DC and is engineered to deliver exceptional performance and durability. Its compact size and robust design make it ideal for use in industries such as automotive, aerospace, and medical equipment. This product is carefully crafted using the latest manufacturing techniques and materials to ensure optimum performance and longevity.
EM050-9-222-A - Round Electromagnet 0.5 inch Dia. 9 volts DC - Holding 2 lbs.
$30.93

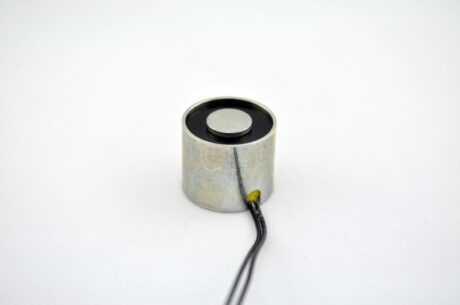

EM075-12-222 - Round Electromagnet 0.75 inch Dia. 12 volts DC - Holding 6 lbs.
$29.24
EM050-28-222-A – Round Electromagnet 0.5 inch Dia. 28 volts DC – Holding 2 lbs.
$30.92
4 in stock (can be backordered)
Additional information
| Weight | 0.02 lbs |
|---|---|
| Dimensions | 0.5 × 0.5 × 0.5 in |
| Holding Force (Lbs.) (2) | 2 |
| Voltage | 28 |
| Current | DC |
| Duty | Continuous |
| Amps | 0.037 |
| Quick Release | No |
| Encapsulation | No |
| Anti-Rotation Pin | No |
| Mounting Option | Tapped Rear Threaded |
| Bolt Desc. or Thread | Female 6-32 |
| Mounting Screw Supplied (2) | No |
| Lead Wire Type (3) | TFE |
| Lead Wire Ga. | 28 |
| Lead Wire Length (in.) | 11 |
| High Temperature (500 f) | No |
| Magnetic Stainless (430FR) | No |
| Outer Diameter (in.) | 0.5 |
| Height (in.) 3 | 0.5 |
