The EM050-9-222-A is a high-quality round electromagnet with a 0.5 inch diameter and a holding capacity of 2 lbs. This precision-made product operates on 9 volts DC and is ideal for use in various mechanical and electrical applications that require a reliable magnetic force. Its compact size and efficient energy consumption make it suitable for use in small devices, such as handheld electronic tools, robotics, and magnetic locks. This product is designed to deliver superior performance, durability, and consistency in challenging environments.
EM050-6H-22-A - Round Electromagnet 0.5 inch Dia. 6 volts DC - Holding 3 lbs.
$70.94
EM050-28-222-A - Round Electromagnet 0.5 inch Dia. 28 volts DC - Holding 2 lbs.
$30.92
EM050-9-222-A – Round Electromagnet 0.5 inch Dia. 9 volts DC – Holding 2 lbs.
$30.93
7 in stock (can be backordered)

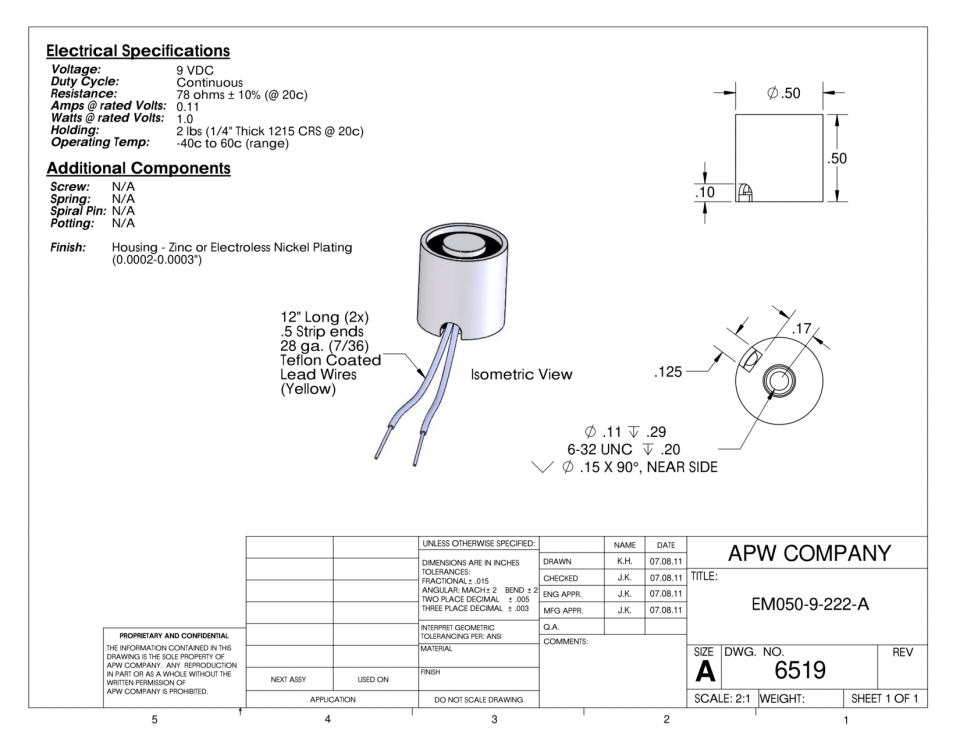

PRODUCT FILES: PDF SPECIFICATION 3-D FILE
Additional information
| Weight | 0.02 lbs |
|---|---|
| Dimensions | 0.5 × 0.5 × 0.5 in |
| Holding Force (Lbs.) (2) | 2 |
| Voltage | 9 |
| Current | DC |
| Duty | Continuous |
| Amps | 0.11 |
| Quick Release | No |
| Encapsulation | No |
| Anti-Rotation Pin | No |
| Mounting Option | Tapped Rear Threaded |
| Bolt Desc. or Thread | Female 6-32 |
| Mounting Screw Supplied (2) | No |
| Lead Wire Type (3) | TFE |
| Lead Wire Ga. | 28 |
| Lead Wire Length (in.) | 11 |
| High Temperature (500 f) | No |
| Magnetic Stainless (430FR) | No |
| Outer Diameter (in.) | 0.5 |
| Height (in.) 3 | 0.5 |
