The EM050-6H-22-A Round Electromagnet is a high-quality, precision-made product designed for applications requiring a holding force of 3 lbs. The 0.5 inch diameter electromagnet operates on a 6-volt DC power supply and is ideal for use in a wide range of applications, including automation, robotics, and machinery. With its durable construction and reliable performance, this electromagnet is an excellent choice for engineers and manufacturers seeking a high-quality, cost-effective solution for their electromagnet needs.
EM050-6-222-A - Round Electromagnet 0.5 inch Dia. 6 volts DC - Holding 2 lbs.
$30.94
EM050-9-222-A - Round Electromagnet 0.5 inch Dia. 9 volts DC - Holding 2 lbs.
$30.93
EM050-6H-22-A – Round Electromagnet 0.5 inch Dia. 6 volts DC – Holding 3 lbs.
$70.94
34 in stock (can be backordered)

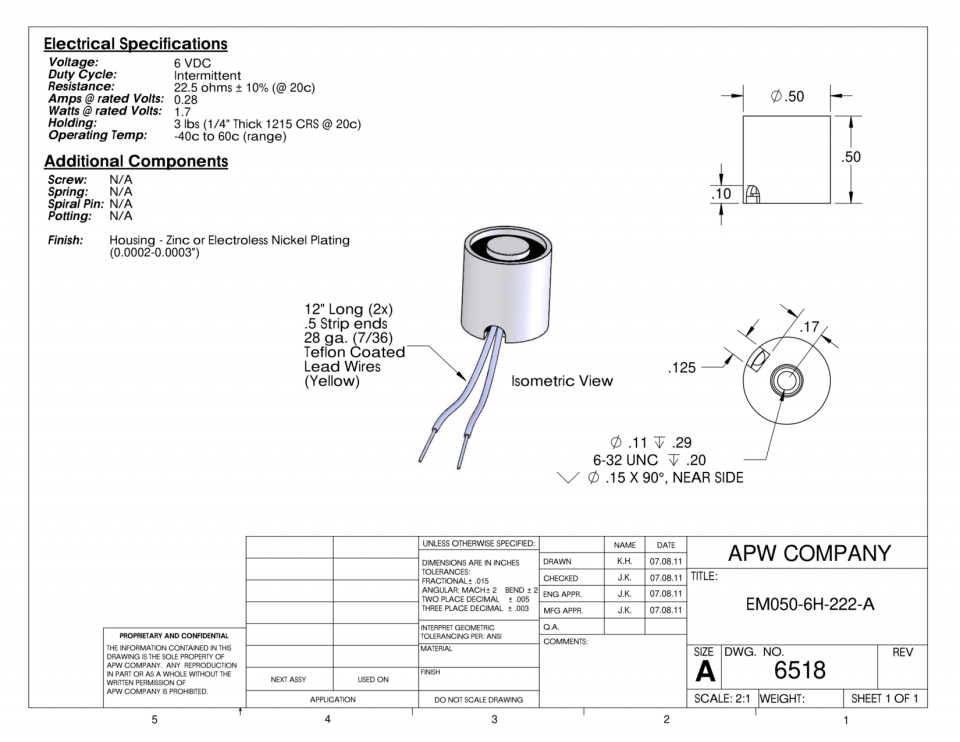

PRODUCT FILES: PDF SPECIFICATION 3-D FILE
Additional information
| Weight | 0.02 lbs |
|---|---|
| Dimensions | 0.5 × 0.5 × 0.5 in |
| Holding Force (Lbs.) (2) | 3 |
| Voltage | 6 |
| Current | DC |
| Duty | Intermittent |
| Amps | 0.28 |
| Quick Release | No |
| Encapsulation | No |
| Anti-Rotation Pin | No |
| Mounting Option | Tapped Rear Threaded |
| Bolt Desc. or Thread | Female 6-32 |
| Mounting Screw Supplied (2) | No |
| Lead Wire Type (3) | TFE |
| Lead Wire Ga. | 28 |
| Lead Wire Length (in.) | 11 |
| High Temperature (500 f) | No |
| Magnetic Stainless (430FR) | No |
| Outer Diameter (in.) | 0.5 |
| Height (in.) 3 | 0.5 |
