The EM050-6-222-A is a high-quality, precision-made round electromagnet with a 0.5 inch diameter and a holding capacity of 2 lbs. It is designed to operate at 6 volts DC and can be used in various applications, including in mechanical and electrical systems, robotics, and automation. With its reliable and efficient performance, this product is an excellent choice for engineers seeking electromagnets that offer excellent holding strength, consistent performance, and exceptional durability.
EM050-3-222-A - Round Electromagnet 0.5 inch Dia. 3 volts DC - Holding 2 lbs.
$30.93
EM050-6H-22-A - Round Electromagnet 0.5 inch Dia. 6 volts DC - Holding 3 lbs.
$70.94
EM050-6-222-A – Round Electromagnet 0.5 inch Dia. 6 volts DC – Holding 2 lbs.
$30.94
7 in stock (can be backordered)

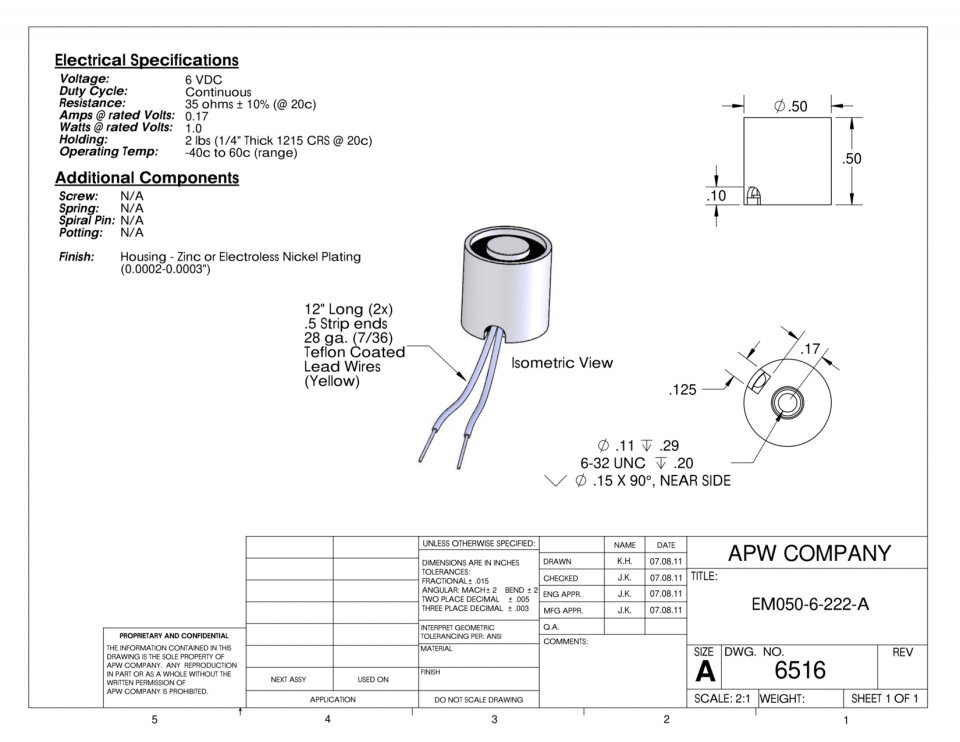

PRODUCT FILES: PDF SPECIFICATION 3-D FILE
Additional information
| Weight | 0.02 lbs |
|---|---|
| Dimensions | 0.5 × 0.5 × 0.5 in |
| Holding Force (Lbs.) (2) | 2 |
| Voltage | 6 |
| Current | DC |
| Duty | Continuous |
| Amps | 0.16 |
| Quick Release | No |
| Encapsulation | No |
| Anti-Rotation Pin | No |
| Mounting Option | Tapped Rear Threaded |
| Bolt Desc. or Thread | Female 6-32 |
| Mounting Screw Supplied (2) | No |
| Lead Wire Type (3) | TFE |
| Lead Wire Ga. | 28 |
| Lead Wire Length (in.) | 11 |
| High Temperature (500 f) | No |
| Magnetic Stainless (430FR) | No |
| Outer Diameter (in.) | 0.5 |
| Height (in.) 3 | 0.5 |
