The EMPP-16137-24 Parallel Pole Electromagnet is a precision-made and high-quality product designed for use in a range of applications. With dimensions of 1.0 W x 6.0 L x 1.27 H, and a holding capacity of up to 415 lbs at 24 volts DC, this electromagnet is suitable for material handling, magnetic separation, and clamping. The product is manufactured with the highest level of precision and quality, ensuring reliable performance and durability. It is an ideal choice for mechanical and electrical engineers looking for a robust and efficient solution for their electromagnetic needs.

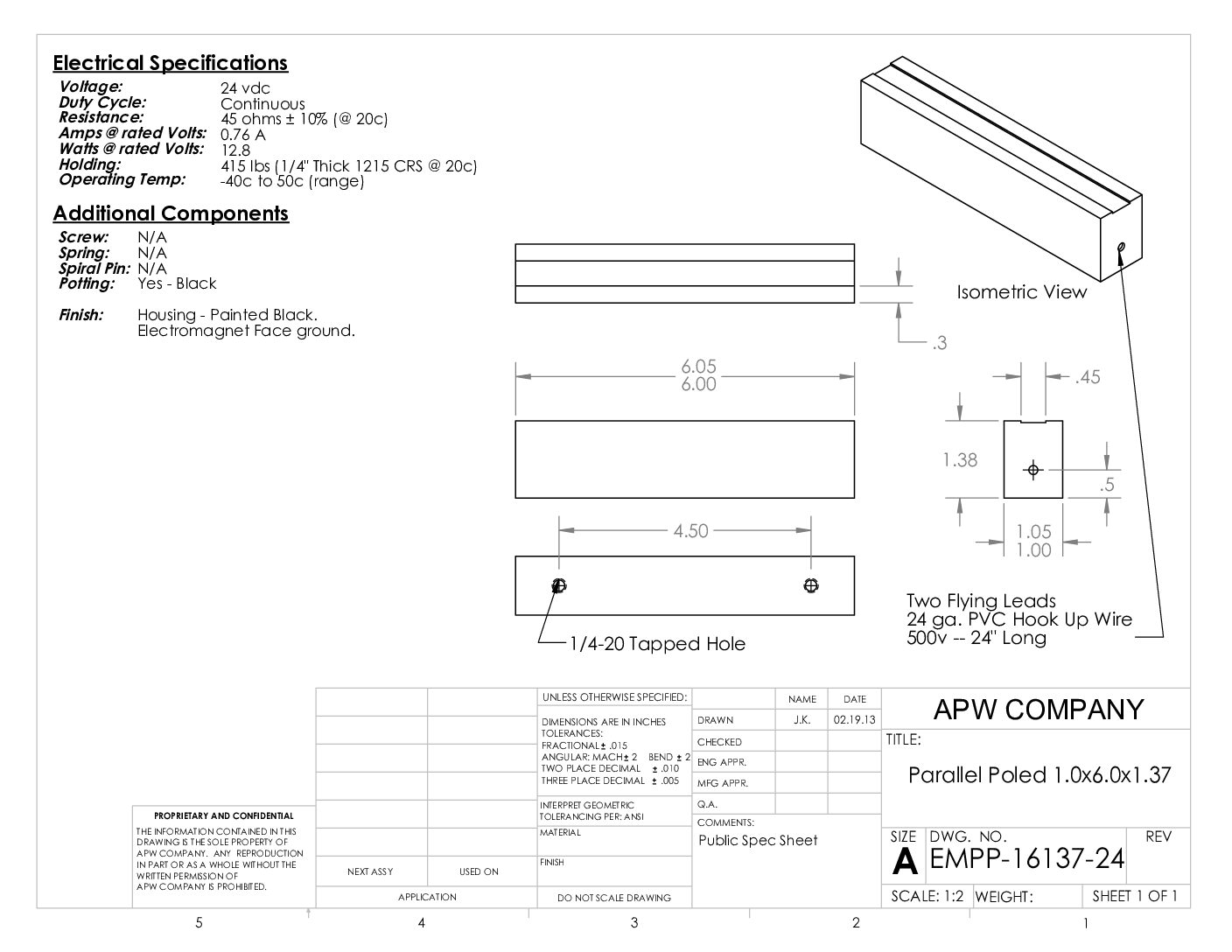

EMPP-16137-24 Parallel Pole Electromagnet 1.0 W x 6.0 L x 1.27 H – 24 vdc Holding 415 lbs
$192.00
Available on backorder
Additional information
| Weight | 2.2 lbs |
|---|---|
| Dimensions | 6 × 1 × 1.38 in |
| Holding Force (Lbs.) (2) | 415 |
| Voltage | 24 |
| Current | DC |
| Duty | Continuous |
| Amps | 0.76 |
| Quick Release | No |
| Encapsulation | Yes |
| Anti-Rotation Pin | No |
| Mounting Option | Tapped Rear Threaded |
| Bolt Desc. or Thread | Tapped 1/4-28 |
| Mounting Screw Supplied (2) | No |
| Lead Wire Type (3) | PVC Hook Up Wire |
| Lead Wire Ga. | 24 |
| Lead Wire Length (in.) | 24" |
| High Temperature (500 f) | No |
| Magnetic Stainless (430FR) | No |
| Height (in.) 3 | 1.38 |
| Length (in.) | 6 |
| Width (in.) | 1 |
