The EMPP-14137-24 Parallel Pole Electromagnet is a high-quality and precision-made product that is designed for a variety of applications. With dimensions of 1.0 W x 4.0 L x 1.27 H, and a holding capacity of up to 260 lbs at 24 volts DC, this electromagnet is ideal for applications such as material handling, magnetic separation, and clamping. This product is manufactured with the highest level of precision and quality to ensure reliable performance and durability. It is an excellent choice for mechanical and electrical engineers seeking a robust and efficient solution for their electromagnetic needs.
EMPP-16137-24 Parallel Pole Electromagnet 1.0 W x 6.0 L x 1.27 H - 24 vdc Holding 415 lbs
$192.00
EMR-4035-100-24 Rectangular Electromagnet 100mm Length 24 volts DC
$150.98

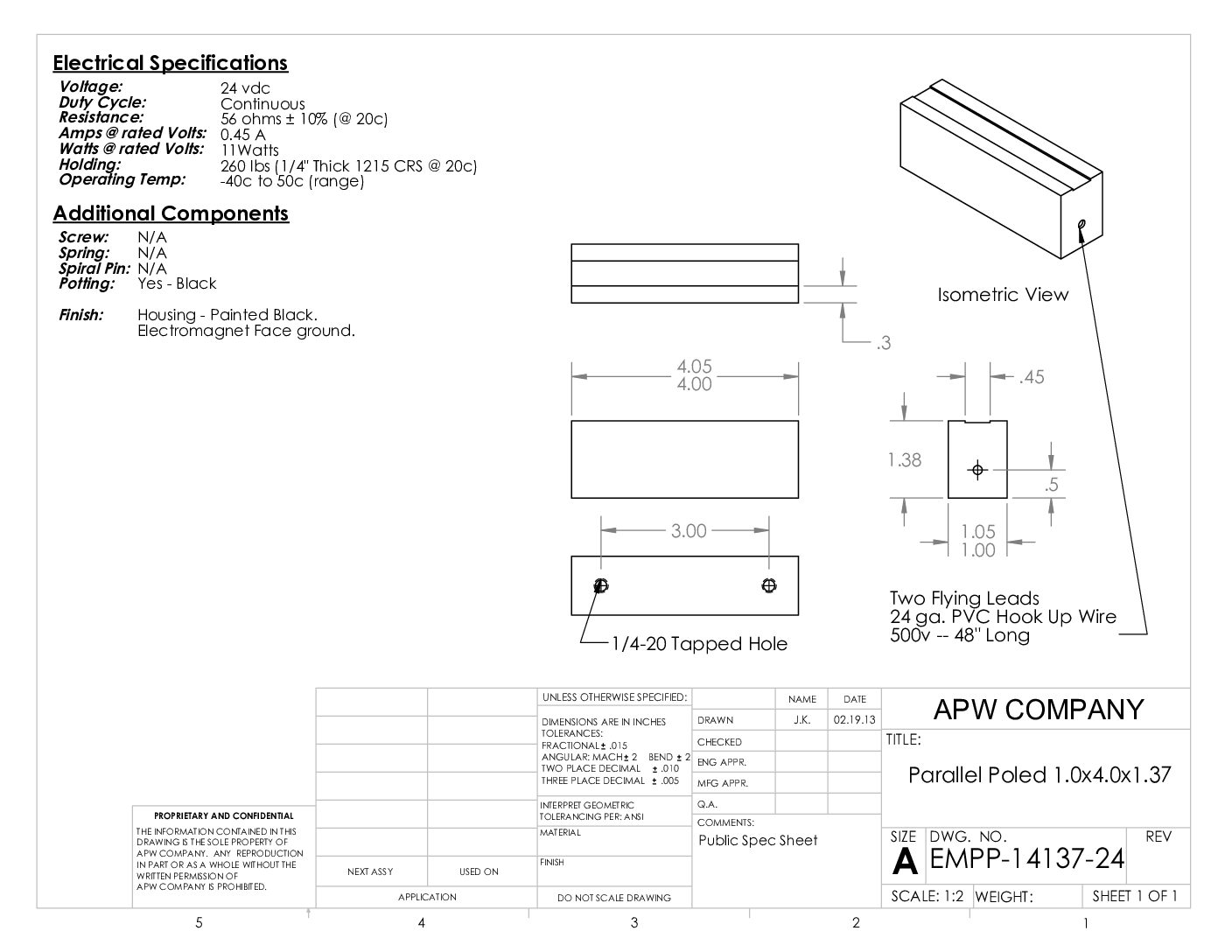

EMPP-14137-24 Parallel Pole Electromagnet 1.0 W x 4.0 L x 1.27 H – 24 vdc Holding 260 lbs
$87.54
8 in stock (can be backordered)
Additional information
| Weight | 2 lbs |
|---|---|
| Dimensions | 4 × 1 × 1.38 in |
| Holding Force (Lbs.) (2) | 260 |
| Voltage | 24 |
| Current | DC |
| Duty | Continuous |
| Amps | 0.45 |
| Quick Release | No |
| Encapsulation | Yes |
| Anti-Rotation Pin | No |
| Mounting Option | Tapped Rear Threaded |
| Bolt Desc. or Thread | Tapped 1/4-28 |
| Mounting Screw Supplied (2) | No |
| Lead Wire Type (3) | PVC Hook Up Wire |
| Lead Wire Ga. | 24 |
| Lead Wire Length (in.) | 48" |
| High Temperature (500 f) | No |
| Magnetic Stainless (430FR) | No |
| Height (in.) 3 | 1.38 |
| Length (in.) | 4 |
| Width (in.) | 1 |
