The EML15mm-12 Round Permanent Electromagnet is a high-quality and precision-made product designed to operate on 12 volts DC. With a diameter of 15 mm and a holding capacity of 4.49 lbs, this electromagnet is ideal for use in a range of applications, such as material handling, magnetic separation, and clamping. The product is manufactured with the highest level of precision and quality to ensure reliable performance and durability. It is an excellent choice for mechanical and electrical engineers seeking a robust and efficient solution for their electromagnetic needs, and will perform exceptionally well in various settings.
EML12mm-12 - Round Permanent Electromagnet 12 mm Dia. 12 volts DC - Holding 3.3 lbs.
$31.68
EML20mm-12 - Round Permanent Electromagnet 20 mm Dia. 12 volts DC - Holding 10.12 lbs.
$28.60
EML15mm-12 – Round Permanent Electromagnet 15 mm Dia. 12 volts DC – Holding 4.49 lbs.
$34.76
115 in stock (can be backordered)

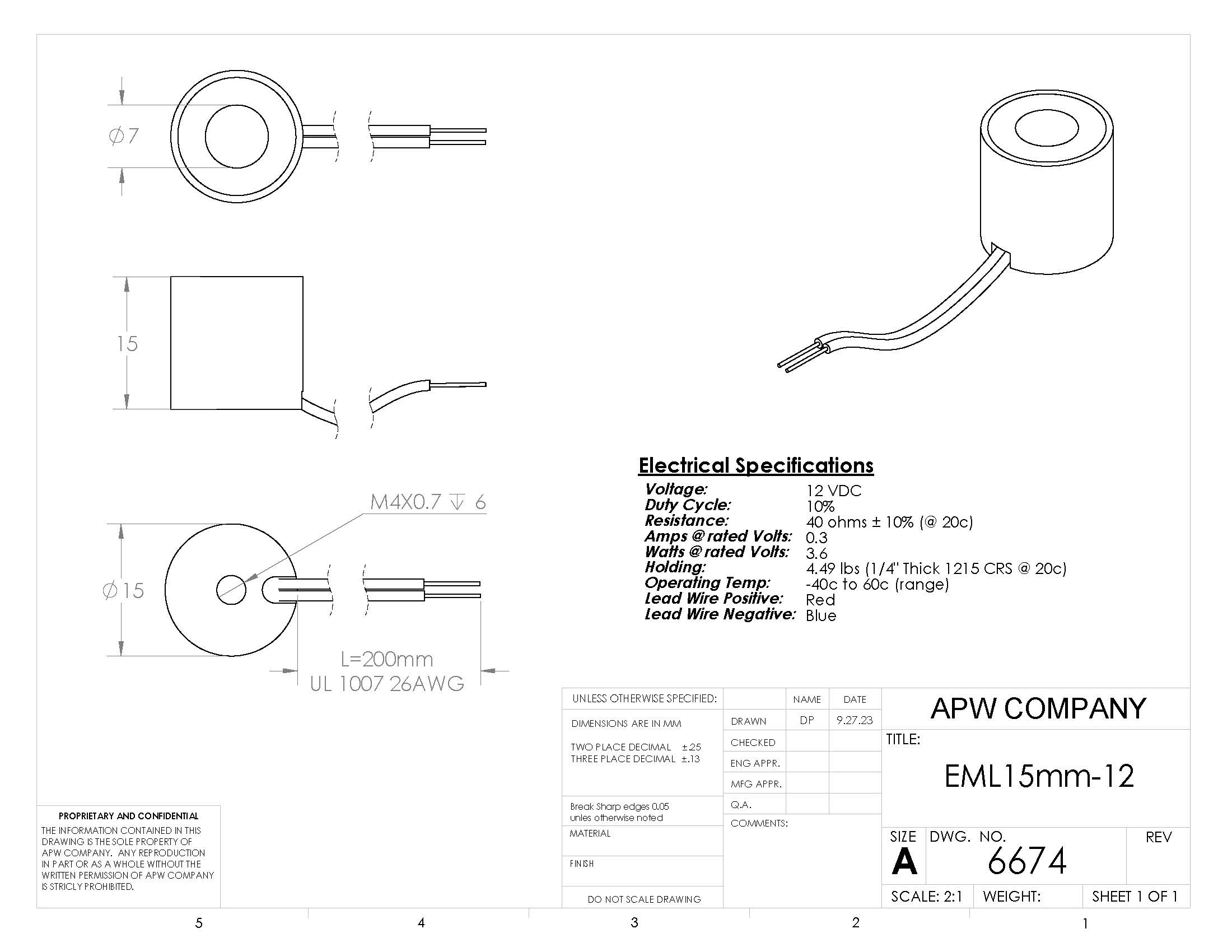

PRODUCT FILES: PDF SPECIFICATION 3-D FILE
Additional information
| Weight | 0.04 lbs |
|---|---|
| Dimensions | 0.59 × 0.59 × 0.59 in |
| Holding Force (Lbs.) (2) | 4.49 |
| Voltage | 12 |
| Amps | 0.3 |
| Current | DC |
| Duty | Intermittent |
| Encapsulation | Yes |
| Mounting Option | Tapped Rear Threaded |
| Bolt Desc. or Thread | Metric Tapped M4 |
| Mounting Screw Supplied (2) | No |
| Lead Wire Type (3) | UL 1007 |
| Lead Wire Ga. | 26 |
| Lead Wire Length (mm) | 200 |
| Length (mm) | 15 |
| Outer Diameter (mm) | 15 |
