The EML12mm-12 Round Permanent Electromagnet is a high-quality, precision-made product designed to operate on 12 volts DC. With a diameter of 12 mm and a holding capacity of 3.3 lbs, this electromagnet is ideal for use in a range of applications, such as material handling, magnetic separation, and clamping. The product is manufactured with the highest level of precision and quality to ensure reliable performance and durability. It is an excellent choice for mechanical and electrical engineers seeking a robust and efficient solution for their electromagnetic needs, and will perform exceptionally well in various settings.
EML10mm-12 - Round Permanent Electromagnet 10 mm Dia. 12 volts DC - Holding 0.67 lbs.
$31.68
EML15mm-12 - Round Permanent Electromagnet 15 mm Dia. 12 volts DC - Holding 4.49 lbs.
$34.76
EML12mm-12 – Round Permanent Electromagnet 12 mm Dia. 12 volts DC – Holding 3.3 lbs.
$31.68

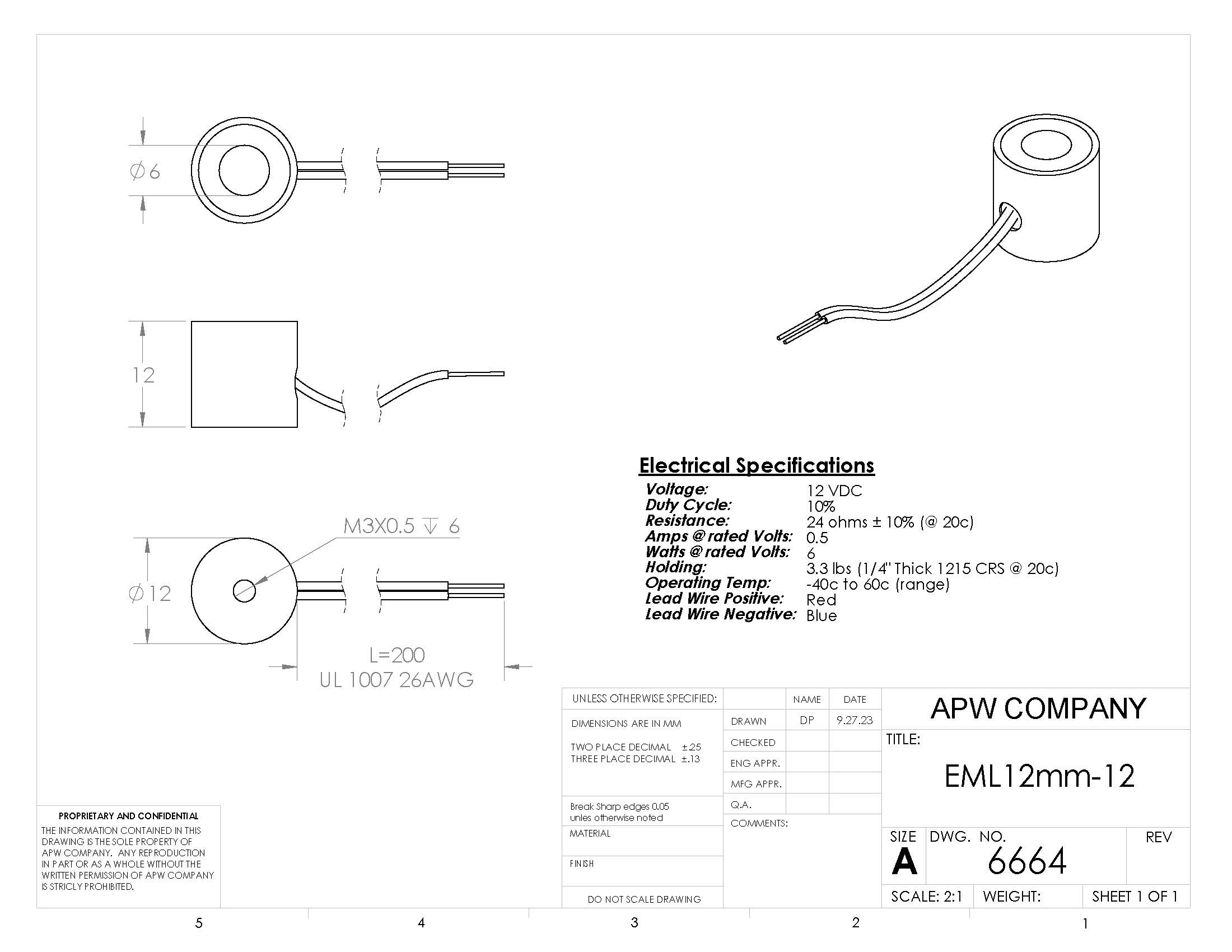

PRODUCT FILES: PDF SPECIFICATION 3-D FILE
Additional information
| Weight | 0.02 lbs |
|---|---|
| Dimensions | 0.5 × 0.47 × 0.47 in |
| Holding Force (Lbs.) (2) | 3.3 |
| Voltage | 12 |
| Amps | 0.5 |
| Current | DC |
| Duty | Intermittent |
| Encapsulation | Yes |
| Mounting Option | Tapped Rear Threaded |
| Bolt Desc. or Thread | Metric – Tapped M3 |
| Mounting Screw Supplied (2) | No |
| Lead Wire Type (3) | UL 1007 |
| Lead Wire Ga. | 26 |
| Lead Wire Length (mm) | 200 |
| Length (mm) | 12 |
| Outer Diameter (mm) | 12 |
