The EM300-6-112 Round Electromagnet is a high quality, precision-made product designed to hold up to 300 lbs. of weight. This electromagnet has a 3 inch diameter and operates at 6 volts DC. It is suitable for a wide range of applications where strong holding force is required, such as in industrial automation, robotics, and security systems. The durable construction and reliable performance make this electromagnet an excellent choice for engineers seeking a high-quality, long-lasting solution.
EM300-12-112 - Round Electromagnet 3 inch Dia. 12 volts DC - Holding 300 lbs.
$95.80
EM300-115AC-222 - Round Electromagnet 3 inch Dia. 115 volts AC - Holding 400 lbs.
$88.11
EM300-6-112 – Round Electromagnet 3 inch Dia. 6 volts DC – Holding 300 lbs.
$95.80
Available on backorder

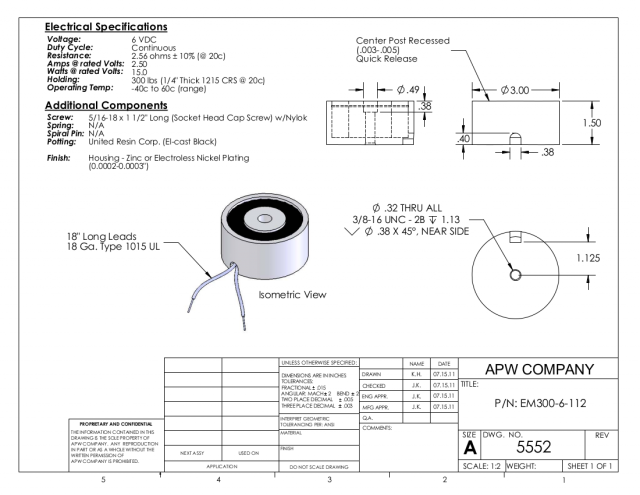

PRODUCT FILES: PDF SPECIFICATION 3-D FILE
Additional information
| Weight | 2.5 lbs |
|---|---|
| Dimensions | 3 × 3 × 1.5 in |
| Holding Force (Lbs.) (2) | 300 |
| Voltage | 6 |
| Current | DC |
| Duty | Continuous |
| Amps | 2.5 |
| Quick Release | Yes |
| Encapsulation | Yes |
| Anti-Rotation Pin | No |
| Mounting Option | Through-Hole w/ Shoulder Bolt |
| Bolt Desc. or Thread | 5/16-18 x 1 1/2 |
| Mounting Screw Supplied (2) | Yes |
| Lead Wire Type (3) | UL |
| Lead Wire Ga. | 18 |
| Lead Wire Length (in.) | 18 |
| High Temperature (500 f) | No |
| Magnetic Stainless (430FR) | No |
| Outer Diameter (in.) | 3 |
| Height (in.) 3 | 1.5 |
