The EM300-3-222 Round Electromagnet is a high-quality, precision-made product designed for applications requiring a holding force of up to 400 lbs. With a 3 inch diameter and 3 volts DC, this electromagnet is suitable for use in a range of mechanical and electrical engineering applications, such as magnetic levitation, sorting and separation systems, and locking mechanisms. The electromagnet is manufactured to the highest standards, ensuring exceptional performance and durability, making it a reliable choice for demanding applications.
EM300-12ac-222-A - Round Electromagnet 3 inch Dia. 12 volts AC - Holding 400 lbs.
$150.00
EM350-24-222 - Round Electromagnet 3.5 inch Dia. 24 volts DC - Holding 600 lbs.
$129.25
EM300-3-222 – Round Electromagnet 3 inch Dia. 3 volts DC – Holding 400 lbs.
$80.74
2 in stock (can be backordered)

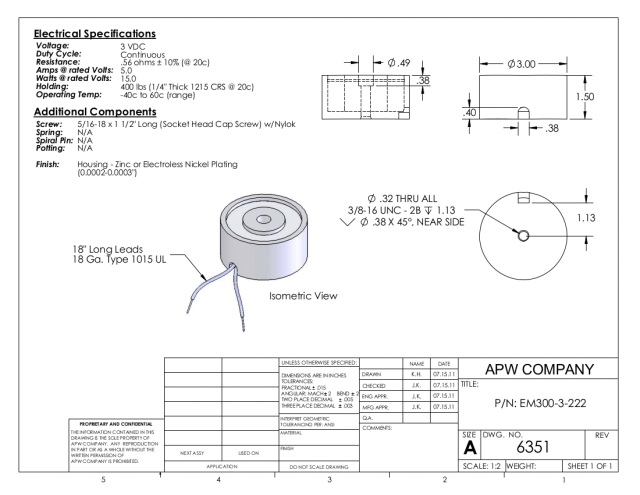

PRODUCT FILES: PDF SPECIFICATION 3-D FILE
Additional information
| Weight | 2.5 lbs |
|---|---|
| Dimensions | 3 × 3 × 1.5 in |
| Holding Force (Lbs.) (2) | 400 |
| Voltage | 3 |
| Current | DC |
| Duty | Continuous |
| Amps | 5 |
| Quick Release | No |
| Encapsulation | No |
| Anti-Rotation Pin | No |
| Mounting Option | Through-Hole w/ Shoulder Bolt |
| Bolt Desc. or Thread | 5/16-18 x 1 1/2 |
| Mounting Screw Supplied (2) | Yes |
| Lead Wire Type (3) | UL |
| Lead Wire Ga. | 18 |
| Lead Wire Length (in.) | 18 |
| High Temperature (500 f) | No |
| Magnetic Stainless (430FR) | No |
| Outer Diameter (in.) | 3 |
| Height (in.) 3 | 1.5 |
