The EM300-12ac-222-A is a high quality precision-made round electromagnet with a 3 inch diameter, designed for applications requiring a holding force of up to 400 lbs. This electromagnet operates at 12 volts AC and is well-suited for use in mechanical and electrical engineering applications. Typical applications include door locks, security systems, and conveyor systems. The electromagnet is highly reliable and manufactured to precise tolerances, ensuring consistent performance and long service life.
EM300-6-122 - Round Electromagnet 3 inch Dia. 6 volts DC - Holding 300 lbs.
$83.04
EM300-3-222 - Round Electromagnet 3 inch Dia. 3 volts DC - Holding 400 lbs.
$80.74
EM300-12ac-222-A – Round Electromagnet 3 inch Dia. 12 volts AC – Holding 400 lbs.
$150.00
Available on backorder

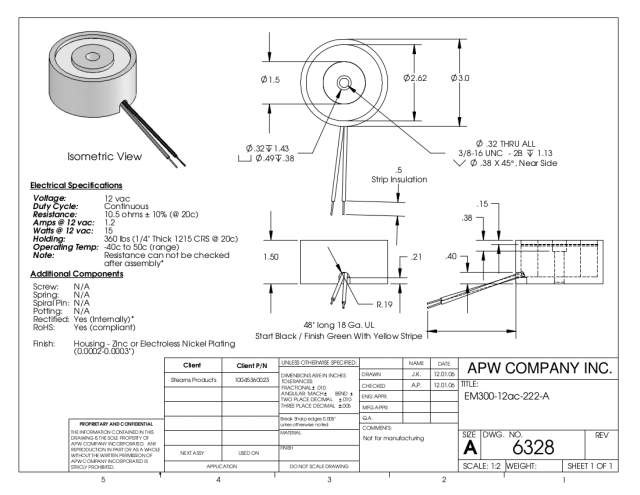

PRODUCT FILES: PDF SPECIFICATION 3-D FILE
Additional information
| Weight | 2.5 lbs |
|---|---|
| Dimensions | 3 × 3 × 1.5 in |
| Holding Force (Lbs.) (2) | 400 |
| Voltage | 12 |
| Current | AC |
| Duty | Continuous |
| Amps | 1.25 |
| Quick Release | No |
| Encapsulation | No |
| Anti-Rotation Pin | No |
| Mounting Option | Through-Hole w/ Shoulder Bolt |
| Bolt Desc. or Thread | 5/16-18 x 1 1/2 |
| Mounting Screw Supplied (2) | Yes |
| Lead Wire Type (3) | UL |
| Lead Wire Ga. | 18 |
| Lead Wire Length (in.) | 48" |
| High Temperature (500 f) | No |
| Magnetic Stainless (430FR) | No |
| Outer Diameter (in.) | 3 |
| Height (in.) 3 | 1.5 |
