The EM300-24-212 is a high-quality, precision-made round electromagnet with a 3 inch diameter and a holding capacity of 400 lbs. This electromagnet is powered by 24 volts DC and is designed to deliver exceptional performance in a variety of industrial applications. It is particularly well-suited for use in automated sorting and assembly systems, where it can be used to securely hold and move heavy metal parts. With its rugged construction and reliable performance, the EM300-24-212 is an ideal solution for demanding industrial environments.
EM300-110-212 - Round Electromagnet 3 inch Dia. 110 volts DC - Holding 400 lbs.
$95.80
EM300-12-212 - Round Electromagnet 3 inch Dia. 12 volts DC - Holding 400 lbs.
$95.80
EM300-24-212 – Round Electromagnet 3 inch Dia. 24 volts DC – Holding 400 lbs.
$95.80
6 in stock (can be backordered)

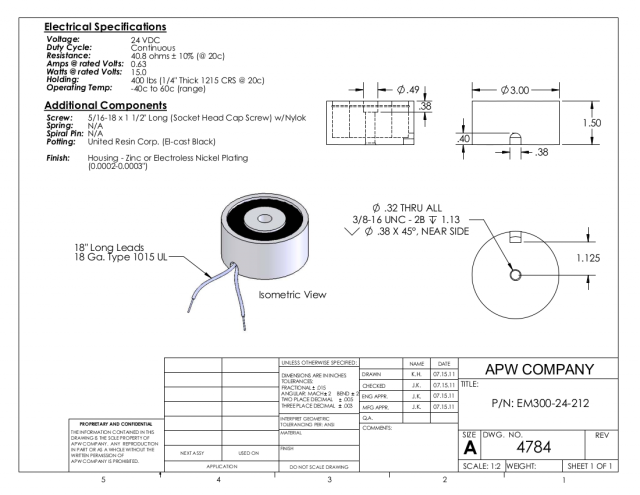

PRODUCT FILES: PDF SPECIFICATION 3-D FILE
Additional information
| Weight | 2.5 lbs |
|---|---|
| Dimensions | 3 × 3 × 1.5 in |
| Holding Force (Lbs.) (2) | 400 |
| Voltage | 24 |
| Current | DC |
| Duty | Continuous |
| Amps | 0.62 |
| Quick Release | No |
| Encapsulation | Yes |
| Anti-Rotation Pin | No |
| Mounting Option | Through-Hole w/ Shoulder Bolt |
| Bolt Desc. or Thread | 5/16-18 x 1 1/2 |
| Mounting Screw Supplied (2) | Yes |
| Lead Wire Type (3) | UL |
| Lead Wire Ga. | 18 |
| Lead Wire Length (in.) | 18 |
| High Temperature (500 f) | No |
| Magnetic Stainless (430FR) | No |
| Outer Diameter (in.) | 3 |
| Height (in.) 3 | 1.5 |
