The EM300-110-212 is a high-quality round electromagnet with a 3 inch diameter that operates at 110 volts DC and can hold up to 400 lbs. This precision-made product is ideal for use in various applications where electromagnets are required, such as in manufacturing, automotive, and aerospace industries. Its robust design and reliable performance make it suitable for heavy-duty applications that require high holding force. The EM300-110-212 is designed to provide optimal performance, durability, and efficiency, ensuring long-lasting and trouble-free operation.
EM300-115ac-212 - Round Electromagnet 3 inch Dia. 115 volts AC - Holding 400 lbs.
$108.30
EM300-24-212 - Round Electromagnet 3 inch Dia. 24 volts DC - Holding 400 lbs.
$95.80
EM300-110-212 – Round Electromagnet 3 inch Dia. 110 volts DC – Holding 400 lbs.
$95.80
Available on backorder

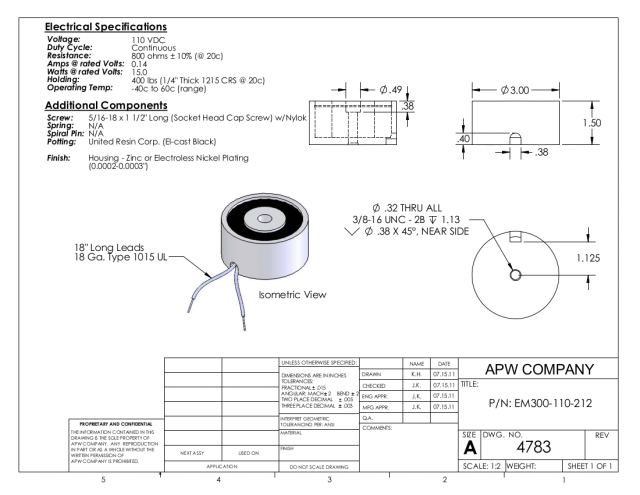

PRODUCT FILES: PDF SPECIFICATION 3-D FILE
Additional information
| Weight | 2.5 lbs |
|---|---|
| Dimensions | 3 × 3 × 1.5 in |
| Holding Force (Lbs.) (2) | 400 |
| Voltage | 110 |
| Current | DC |
| Duty | Continuous |
| Amps | 0.13 |
| Quick Release | No |
| Encapsulation | Yes |
| Anti-Rotation Pin | No |
| Mounting Option | Through-Hole w/ Shoulder Bolt |
| Bolt Desc. or Thread | 5/16-18 x 1 1/2 |
| Mounting Screw Supplied (2) | Yes |
| Lead Wire Type (3) | UL |
| Lead Wire Ga. | 18 |
| Lead Wire Length (in.) | 18 |
| High Temperature (500 f) | No |
| Magnetic Stainless (430FR) | No |
| Outer Diameter (in.) | 3 |
| Height (in.) 3 | 1.5 |
