The EM237-24-112 is a high-quality round electromagnet with a 2.37 inch diameter, designed for holding applications that require a maximum load of 170 lbs. The product is manufactured with precision and is perfect for use in various applications where electromagnets are needed. It operates on a 24 volts DC supply and can hold the load securely in place. The EM237-24-112 electromagnet is suitable for use in industries such as automation, robotics, and manufacturing, where a reliable holding force is required for positioning and clamping tasks.
EM237-115ac-112 - Round Electromagnet 2.37 inch Dia. 115 volts AC - Holding 170 lbs.
$77.21
EM300-3-212 - Round Electromagnet 3 inch Dia. 3 volts DC - Holding 400 lbs.
$95.80
EM237-24-112 – Round Electromagnet 2.37 inch Dia. 24 volts DC – Holding 170 lbs.
$63.49
Available on backorder

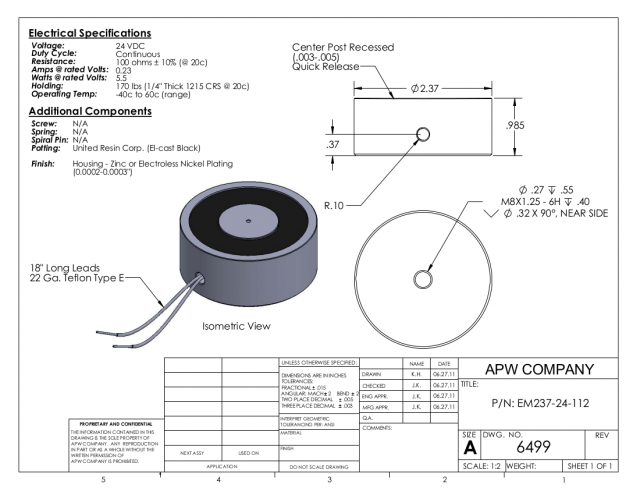

PRODUCT FILES: PDF SPECIFICATION
Additional information
| Weight | 0.9 lbs |
|---|---|
| Dimensions | 2.37 × 2.37 × 0.98 in |
| Holding Force (Lbs.) (2) | 170 |
| Voltage | 24 |
| Current | DC |
| Duty | Continuous |
| Amps | 0.23 |
| Quick Release | Yes |
| Encapsulation | Yes |
| Anti-Rotation Pin | No |
| Mounting Option | Tapped Rear Threaded |
| Bolt Desc. or Thread | Tapped M8 |
| Mounting Screw Supplied (2) | No |
| Lead Wire Type (3) | TFE |
| Lead Wire Ga. | 22 |
| Lead Wire Length (in.) | 18 |
| High Temperature (500 f) | No |
| Magnetic Stainless (430FR) | No |
| Outer Diameter (in.) | 2.37 |
| Height (in.) 3 | 0.98 |
