The EM237-115ac-112 is a high quality, precision-made round electromagnet with a 2.37 inch diameter that operates at 115 volts AC and can hold up to 170 lbs. This electromagnet is designed for applications where a strong and reliable magnetic holding force is required, such as in industrial automation, robotics, and material handling systems. Its compact size and efficient operation make it an excellent choice for a wide range of applications. With its superior performance and durability, the EM237-115ac-112 is a reliable and effective solution for your electromagnet needs.
EM237-12-212 - Round Electromagnet 2.37 inch Dia. 12 volts DC - Holding 190 lbs.
$61.49
EM237-24-112 - Round Electromagnet 2.37 inch Dia. 24 volts DC - Holding 170 lbs.
$63.49
EM237-115ac-112 – Round Electromagnet 2.37 inch Dia. 115 volts AC – Holding 170 lbs.
$77.21
3 in stock (can be backordered)

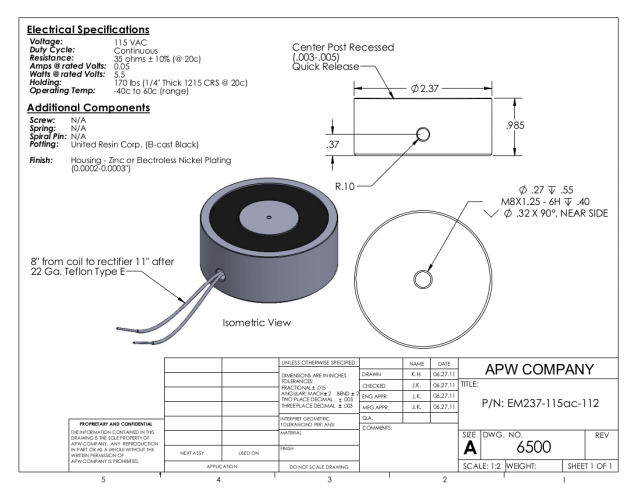

PRODUCT FILES: PDF SPECIFICATION 3-D FILE
Additional information
| Weight | 0.9 lbs |
|---|---|
| Dimensions | 2.37 × 2.37 × 0.98 in |
| Holding Force (Lbs.) (2) | 170 |
| Voltage | 115 |
| Current | AC |
| Duty | Continuous |
| Amps | 0.05 |
| Quick Release | Yes |
| Encapsulation | Yes |
| Anti-Rotation Pin | No |
| Mounting Option | Tapped Rear Threaded |
| Bolt Desc. or Thread | Tapped M8 |
| Mounting Screw Supplied (2) | No |
| Lead Wire Type (3) | TFE |
| Lead Wire Ga. | 22 |
| Lead Wire Length (in.) | 19 |
| High Temperature (500 f) | No |
| Magnetic Stainless (430FR) | No |
| Outer Diameter (in.) | 2.37 |
| Height (in.) 3 | 0.98 |
