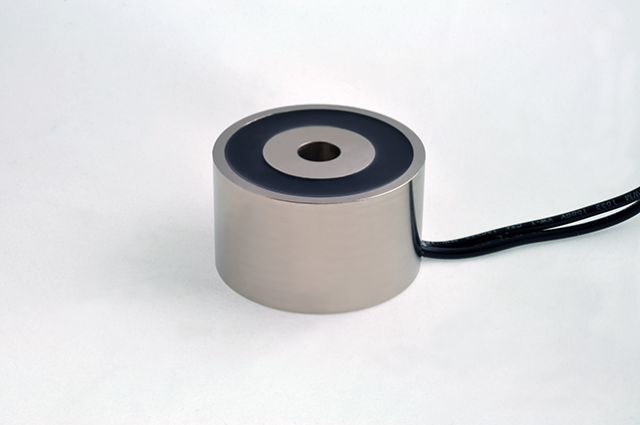

The EM200-90-212 is a high quality, precision-made round electromagnet with a 2 inch diameter and a holding strength of 140 lbs. This model is designed for use with 90 volts DC power supply and is ideal for a range of mechanical and industrial applications, including manufacturing processes, transportation systems, and material handling equipment. Its robust construction and reliable performance make it an excellent choice for demanding environments. Trust in the EM200-90-212 for your heavy-duty electromagnet needs.
EM200-12-212 - Round Electromagnet 2 inch Dia. 12 volts DC - Holding 140 lbs.
$53.19
EM200-12-112 - Round Electromagnet 2 inch Dia. 12 volts DC - Holding 105 lbs.
$53.21
EM200-90-212 – Round Electromagnet 2 inch Dia. 90 volts DC – Holding 140 lbs.
$62.47
Available on backorder

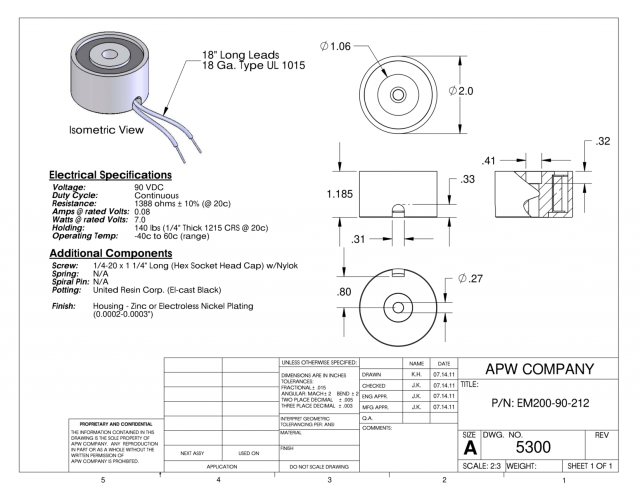

PRODUCT FILES: PDF SPECIFICATION 3-D FILE
Additional information
| Weight | 0.75 lbs |
|---|---|
| Dimensions | 2 × 2 × 1.18 in |
| Holding Force (Lbs.) (2) | 140 |
| Voltage | 90 |
| Current | DC |
| Duty | Continuous |
| Amps | 0.07 |
| Quick Release | No |
| Encapsulation | Yes |
| Anti-Rotation Pin | No |
| Mounting Option | Through-Hole w/ Shoulder Bolt |
| Bolt Desc. or Thread | 1/4-20 x 1 1/4 |
| Mounting Screw Supplied (2) | Yes |
| Lead Wire Type (3) | UL |
| Lead Wire Ga. | 18 |
| Lead Wire Length (in.) | 18 |
| High Temperature (500 f) | No |
| Magnetic Stainless (430FR) | No |
| Outer Diameter (in.) | 2 |
| Height (in.) 3 | 1.18 |
