The EM200-12-112 Round Electromagnet is a high-quality precision-made product capable of holding up to 105 lbs. with a 2 inch diameter and 12 volts DC. This electromagnet is designed for use in a wide range of applications, such as industrial automation, robotics, and magnetic separation. Its compact design and high holding force make it an ideal choice for space-constrained applications where a powerful magnet is required. The product is engineered and tested to meet the highest industry standards, ensuring reliable performance in the toughest environments.
EM200-90-212 - Round Electromagnet 2 inch Dia. 90 volts DC - Holding 140 lbs.
$62.47
EM200-6-112 - Round Electromagnet 2 inch Dia. 6 volts DC - Holding 105 lbs.
$53.21

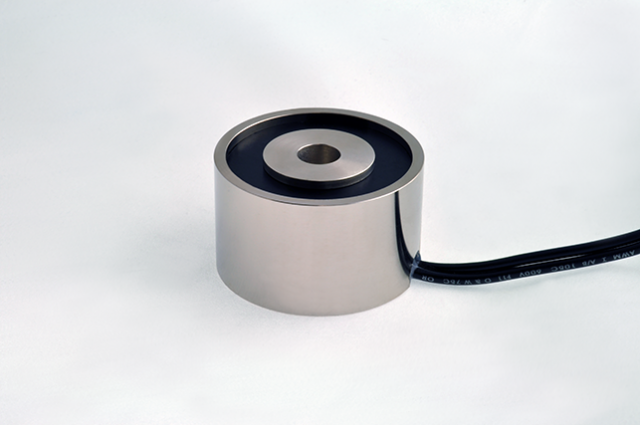

EM200-12-112 – Round Electromagnet 2 inch Dia. 12 volts DC – Holding 105 lbs.
$53.21
Available on backorder

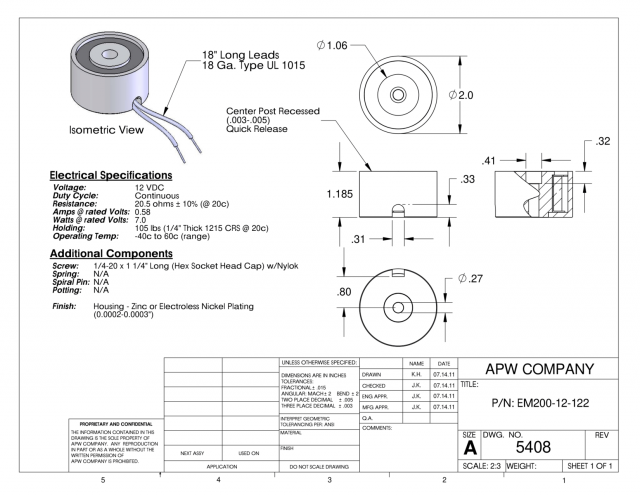

PRODUCT FILES: PDF SPECIFICATION 3-D FILE
Additional information
| Weight | 0.75 lbs |
|---|---|
| Dimensions | 2 × 2 × 1.18 in |
| Holding Force (Lbs.) (2) | 105 |
| Voltage | 12 |
| Current | DC |
| Duty | Continuous |
| Amps | 0.58 |
| Quick Release | Yes |
| Encapsulation | Yes |
| Anti-Rotation Pin | No |
| Mounting Option | Through-Hole w/ Shoulder Bolt |
| Bolt Desc. or Thread | 1/4-20 x 1 1/4 |
| Mounting Screw Supplied (2) | Yes |
| Lead Wire Type (3) | UL |
| Lead Wire Ga. | 18 |
| Lead Wire Length (in.) | 18 |
| High Temperature (500 f) | No |
| Magnetic Stainless (430FR) | No |
| Outer Diameter (in.) | 2 |
| Height (in.) 3 | 1.18 |
