The EM200-24-222-B is a high-quality, precision-made round electromagnet with a 2 inch diameter, designed for holding up to 140 lbs. when energized with 24 volts DC. This electromagnet is suitable for a wide range of applications, including automated manufacturing, robotics, and security systems. It features a robust construction that can withstand challenging environments, and its superior magnetic strength ensures reliable operation. The EM200-24-222-B is an excellent choice for mechanical and electrical engineers seeking a high-performance electromagnet for demanding applications.
EM200-24-212-B - Round Electromagnet 2 inch Dia. 24 VDC - Holding 140 lbs.
$41.61
EM400-6-212 – Round Electromagnet 4 inch Dia. 6 VDC – Holding 800 lbs.
$138.74
EM200-24-222-B – Round Electromagnet 2 inch Dia. 24 VDC – Holding 140 lbs.
$41.61
11 in stock (can be backordered)

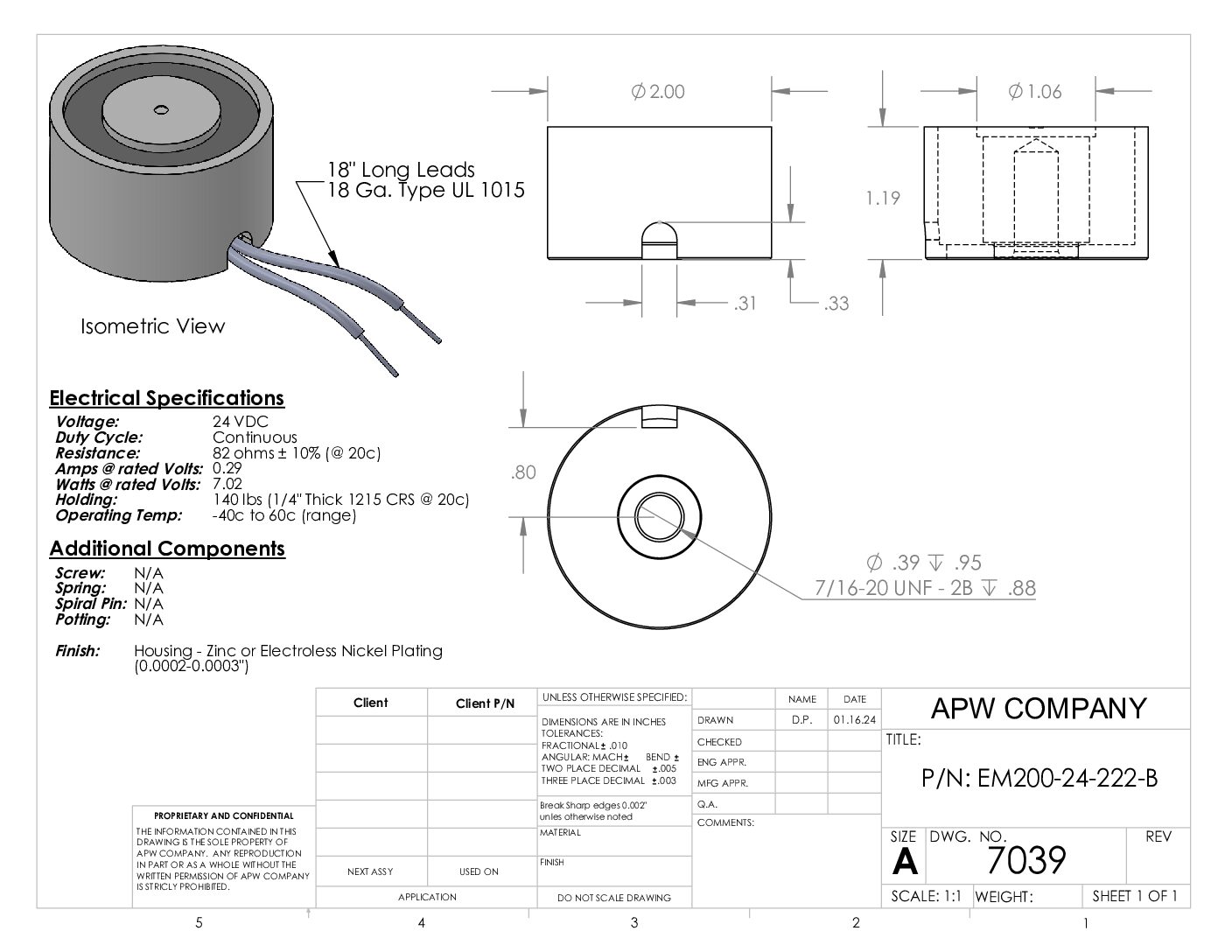

PRODUCT FILES: PDF SPECIFICATION 3-D FILE
Additional information
| Weight | 0.71 lbs |
|---|---|
| Dimensions | 2 × 2 × 1.18 in |
| Holding Force (Lbs.) (2) | 140 |
| Voltage | 24 |
| Current | DC |
| Duty | Continuous |
| Amps | 0.29 |
| Quick Release | No |
| Encapsulation | No |
| Anti-Rotation Pin | No |
| Mounting Option | Rear Tapped 7/16-20 |
| Mounting Screw Supplied (2) | No |
| Lead Wire Type (3) | UL |
| Lead Wire Ga. | 18 |
| Lead Wire Length (in.) | 18 |
| High Temperature (500 f) | No |
| Magnetic Stainless (430FR) | No |
| Outer Diameter (in.) | 2 |
| Height (in.) 3 | 1.18 |
