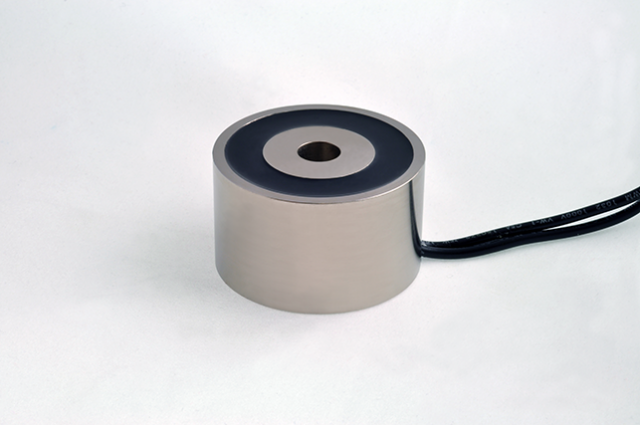

The EM200-24-211 is a high-quality precision-made round electromagnet with a 2 inch diameter that operates on 24 volts DC and is capable of holding up to 140 lbs. This electromagnet is designed for use in applications where a strong holding force is required, such as industrial manufacturing, automation, robotics, and material handling. With its durable construction and reliable performance, this electromagnet is an ideal solution for a wide range of engineering applications.
EM200-115ac-112-AB - Round Electromagnet 2 inch Dia. 115 volts AC - Holding 140 lbs.
$69.63
EM200-12-211 - Round Electromagnet 2 inch Dia. 12 volts DC - Holding 140 lbs.
$53.21
EM200-24-211 – Round Electromagnet 2 inch Dia. 24 volts DC – Holding 140 lbs.
$53.21
Available on backorder

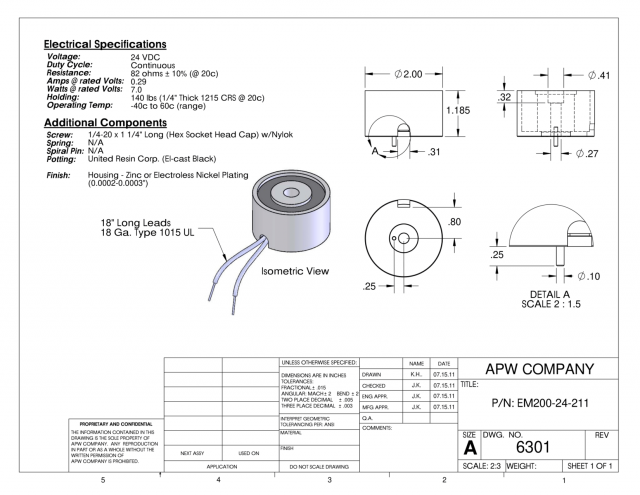

PRODUCT FILES: PDF SPECIFICATION 3-D FILE
Additional information
| Weight | 0.75 lbs |
|---|---|
| Dimensions | 2 × 2 × 1.18 in |
| Holding Force (Lbs.) (2) | 140 |
| Voltage | 24 |
| Current | DC |
| Duty | Continuous |
| Amps | 0.29 |
| Quick Release | No |
| Encapsulation | Yes |
| Anti-Rotation Pin | Yes |
| Mounting Option | Through-Hole w/ Shoulder Bolt |
| Bolt Desc. or Thread | 1/4-20 x 1 1/4 |
| Mounting Screw Supplied (2) | Yes |
| Lead Wire Type (3) | UL |
| Lead Wire Ga. | 18 |
| Lead Wire Length (in.) | 18 |
| High Temperature (500 f) | No |
| Magnetic Stainless (430FR) | No |
| Outer Diameter (in.) | 2 |
| Height (in.) 3 | 1.18 |
