The EM175-24-122 is a high-quality, precision-made, round electromagnet with a 1.75 inch diameter and a holding force of 75 lbs. Designed for 24 volts DC power supply, it is ideal for various industrial applications such as magnetic door locks, conveyor systems, and robotic pick-and-place operations. With its high magnetic flux density and excellent insulation, this electromagnet delivers reliable and efficient performance. The robust construction and corrosion-resistant materials ensure long-lasting durability, making it an excellent choice for demanding environments.
EM175-115ac-122 - Round Electromagnet 1.75 inch Dia. 115 volts AC - Holding 75 lbs.
$45.58
EM175-12-122 - Round Electromagnet 1.75 inch Dia. 12 volts DC - Holding 75 lbs.
$38.13
EM175-24-122 – Round Electromagnet 1.75 inch Dia. 24 volts DC – Holding 75 lbs.
$38.13
1 in stock (can be backordered)

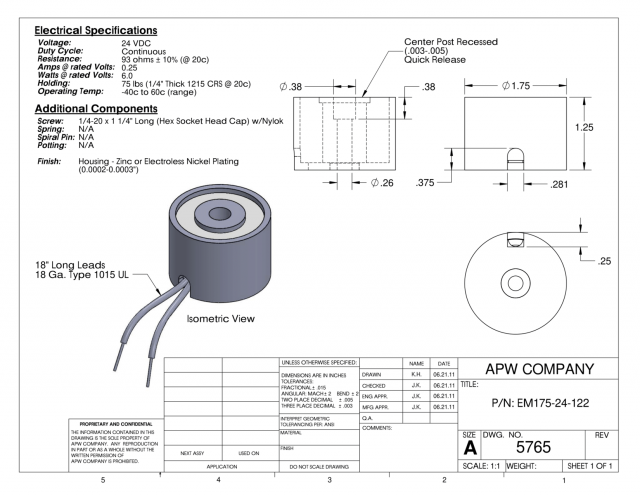

PRODUCT FILES: PDF SPECIFICATION 3-D FILE
Additional information
| Weight | 0.61 lbs |
|---|---|
| Dimensions | 1.75 × 1.75 × 1.25 in |
| Holding Force (Lbs.) (2) | 75 |
| Voltage | 24 |
| Current | DC |
| Duty | Continuous |
| Amps | 0.25 |
| Quick Release | Yes |
| Encapsulation | No |
| Anti-Rotation Pin | No |
| Mounting Option | Through-Hole w/ Shoulder Bolt |
| Bolt Desc. or Thread | 1/4-20 x 1 1/4 |
| Mounting Screw Supplied (2) | Yes |
| Lead Wire Type (3) | UL |
| Lead Wire Ga. | 22 |
| Lead Wire Length (in.) | 18 |
| High Temperature (500 f) | No |
| Magnetic Stainless (430FR) | No |
| Outer Diameter (in.) | 1.75 |
| Height (in.) 3 | 1.25 |
