The EM150-12-221 Round Electromagnet is a high-quality, precision-made product designed for use in applications where strong holding force is required. With a diameter of 1.5 inches and 12 volts DC, this electromagnet is capable of holding up to 88 lbs. Some common applications include door locks, security systems, and industrial machinery. Made with high-quality materials and manufactured to exacting standards, the EM150-12-221 is a reliable and effective solution for any electromagnet application requiring a strong holding force.
EM150-24-122-A - Round Electromagnet 1.5 inch Dia. 24 volts DC - Holding 66 lbs.
$32.53
EM150-12-21H2 - Round Electromagnet 1.5 inch Dia. 12 volts DC - Holding 88 lbs.
$83.48
EM150-12-221 – Round Electromagnet 1.5 inch Dia. 12 volts DC – Holding 88 lbs.
$32.53
Available on backorder

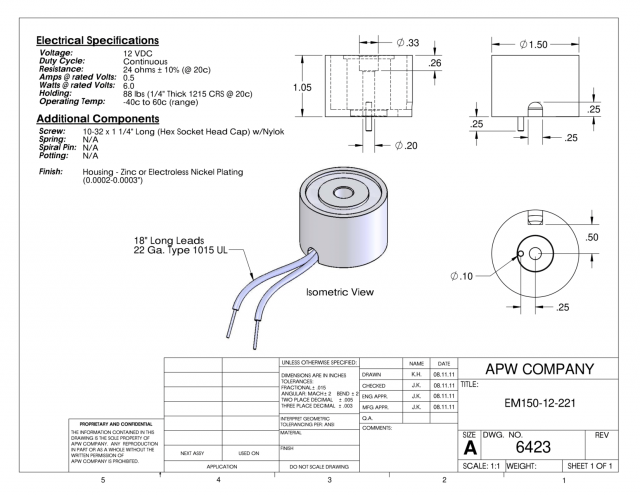

PRODUCT FILES: PDF SPECIFICATION
Additional information
| Weight | 0.38 lbs |
|---|---|
| Dimensions | 1.5 × 1.5 × 1.05 in |
| Holding Force (Lbs.) (2) | 88 |
| Voltage | 12 |
| Current | DC |
| Duty | Continuous |
| Amps | 0.5 |
| Quick Release | No |
| Encapsulation | No |
| Anti-Rotation Pin | Yes |
| Mounting Option | Through-Hole w/ Shoulder Bolt |
| Bolt Desc. or Thread | 10-32 x 1 1/4 |
| Mounting Screw Supplied (2) | Yes |
| Lead Wire Type (3) | UL |
| Lead Wire Ga. | 22 |
| Lead Wire Length (in.) | 18 |
| High Temperature (500 f) | No |
| Magnetic Stainless (430FR) | No |
| Outer Diameter (in.) | 1.5 |
| Height (in.) 3 | 1.05 |
