The EM150-12-21H2 is a high-performance round electromagnet with a holding force of 88 lbs. This precision-made product features a 1.5-inch diameter and operates on 12 volts DC. It is ideal for a variety of applications, including automation, robotics, and manufacturing. The high-quality construction and reliable performance make it a valuable addition to any engineering project. With its durable design and superior holding strength, the EM150-12-21H2 is a top choice for mechanical and electrical engineers looking for a dependable and effective electromagnet solution.
EM150-12-221 - Round Electromagnet 1.5 inch Dia. 12 volts DC - Holding 88 lbs.
$32.53
EM150-24-212-A – Round Electromagnet 1.5 inch Dia. 24 VDC – Holding 88 lbs.
$37.32
EM150-12-21H2 – Round Electromagnet 1.5 inch Dia. 12 volts DC – Holding 88 lbs.
$83.48
Available on backorder

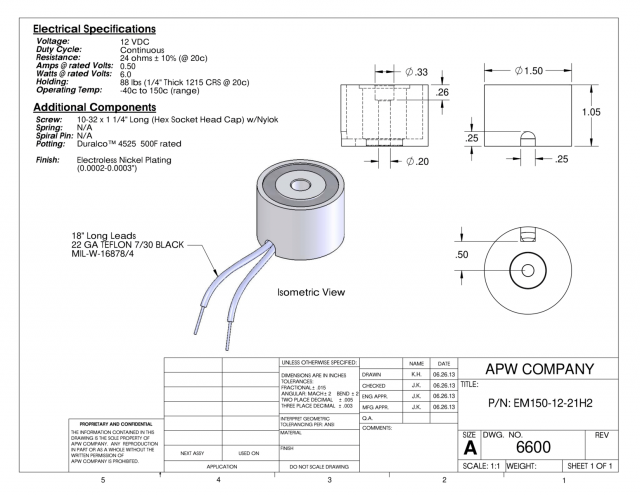

PRODUCT FILES: PDF SPECIFICATION
Additional information
| Weight | 0.4 lbs |
|---|---|
| Dimensions | 1.5 × 1.5 × 1.05 in |
| Holding Force (Lbs.) (2) | 88 |
| Voltage | 12 |
| Current | DC |
| Duty | Continuous |
| Amps | 0.5 |
| Quick Release | No |
| Encapsulation | Yes |
| Anti-Rotation Pin | No |
| Mounting Option | Through-Hole w/ Shoulder Bolt |
| Bolt Desc. or Thread | 10-32 x 1 1/4 |
| Mounting Screw Supplied (2) | Yes |
| Lead Wire Type (3) | UL |
| Lead Wire Ga. | 22 |
| Lead Wire Length (in.) | 18 |
| High Temperature (500 f) | Yes |
| Magnetic Stainless (430FR) | No |
| Outer Diameter (in.) | 1.5 |
| Height (in.) 3 | 1.05 |
