The EM100-24ac-222 Round Electromagnet is a high-quality, precision-made product designed for various mechanical and electrical applications. With a 1-inch diameter and 24 volts AC, it is capable of holding up to 25 lbs. The electromagnet is suitable for use in robotics, material handling equipment, and security systems. Its superior strength and durability make it a reliable choice for industrial settings. The product’s design ensures easy installation and maximum efficiency. With its precise engineering, the EM100-24ac-222 is a top-of-the-line electromagnet for your application needs.
EM100-115ac-222 - Round Electromagnet 1 inch Dia. 115 volts AC - Holding 25 lbs.
$32.95
EM100-24-222 - Round Electromagnet 1 inch Dia. 24 volts DC - Holding 25 lbs.
$27.23
EM100-24ac-222 – Round Electromagnet 1 inch Dia. 24 volts AC – Holding 25 lbs.
$32.95
Available on backorder

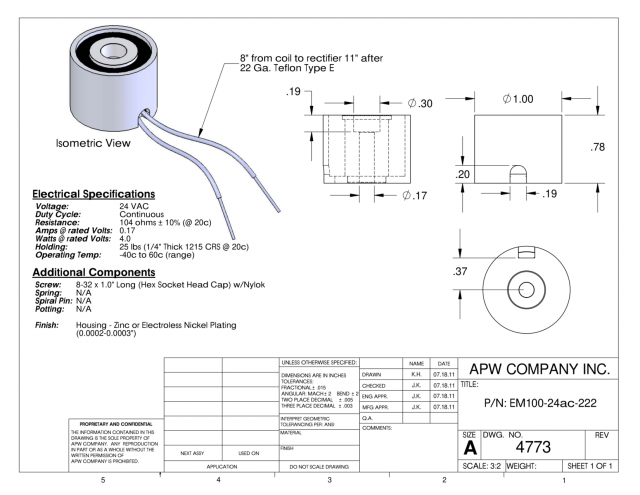

PRODUCT FILES: PDF SPECIFICATION 3-D FILE
Additional information
| Weight | 0.14 lbs |
|---|---|
| Dimensions | 1 × 1 × 0.78 in |
| Holding Force (Lbs.) (2) | 25 |
| Voltage | 24 |
| Current | AC |
| Duty | Continuous |
| Amps | 0.16 |
| Quick Release | No |
| Encapsulation | No |
| Anti-Rotation Pin | No |
| Mounting Option | Through-Hole w/ Shoulder Bolt |
| Bolt Desc. or Thread | 8-32 x 1 |
| Mounting Screw Supplied (2) | Yes |
| Lead Wire Type (3) | TFE |
| Lead Wire Ga. | 22 |
| Lead Wire Length (in.) | 18 |
| High Temperature (500 f) | No |
| Magnetic Stainless (430FR) | No |
| Outer Diameter (in.) | 1 |
| Height (in.) 3 | 0.78 |
