The EM100-115ac-222 is a high-quality, precision-made round electromagnet with a 1 inch diameter, capable of holding up to 25 lbs with 115 volts AC power. It is ideal for a wide range of applications where strong holding forces are required, such as in the automation industry for sorting and handling metal components, in the construction industry for holding large steel parts in place during welding or assembly, and in the aerospace industry for securely holding metal parts during testing and assembly.
EM075-6-122 - Round Electromagnet 0.75 inch Dia. 6 volts DC - Holding 4.5 lbs.
$29.24
EM100-24ac-222 - Round Electromagnet 1 inch Dia. 24 volts AC - Holding 25 lbs.
$32.95

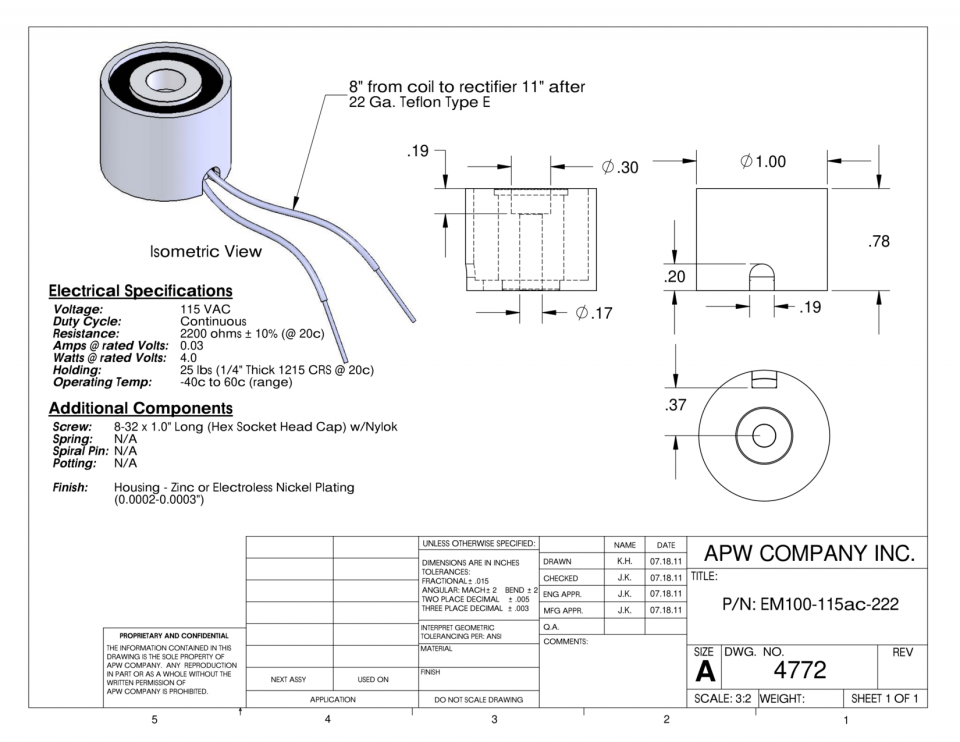

EM100-115ac-222 – Round Electromagnet 1 inch Dia. 115 volts AC – Holding 25 lbs.
$32.95
Available on backorder
PRODUCT FILES: PDF SPECIFICATION 3-D FILE
Additional information
| Weight | 0.14 lbs |
|---|---|
| Dimensions | 1 × 1 × 0.78 in |
| Holding Force (Lbs.) (2) | 25 |
| Voltage | 115 |
| Current | AC |
| Duty | Continuous |
| Amps | 0.03 |
| Quick Release | No |
| Encapsulation | No |
| Anti-Rotation Pin | No |
| Mounting Option | Through-Hole w/ Shoulder Bolt |
| Bolt Desc. or Thread | 8-32 x 1 |
| Mounting Screw Supplied (2) | Yes |
| Lead Wire Type (3) | TFE |
| Lead Wire Ga. | 22 |
| Lead Wire Length (in.) | 18 |
| High Temperature (500 f) | No |
| Magnetic Stainless (430FR) | No |
| Outer Diameter (in.) | 1 |
| Height (in.) 3 | 0.78 |
