The EM075-6-222 Round Electromagnet is a high quality, precision made product designed for use in a variety of industrial and commercial applications. With a 0.75 inch diameter and the ability to hold up to 6 lbs. of weight, this electromagnet is ideal for use in automated sorting and assembly systems, robotic machinery, and other applications where a strong and reliable magnetic field is required. The 6 volts DC power supply allows for efficient and reliable operation, while the durable construction ensures a long service life even in harsh operating conditions.
EM075-24-212-A - Round Electromagnet 0.75 inch Dia. 24 volts DC - Holding 6 lbs.
$34.10
EM075-24-122 - Round Electromagnet 0.75 inch Dia. 24 volts DC - Holding 4.5 lbs.
$29.24
EM075-6-222 – Round Electromagnet 0.75 inch Dia. 6 volts DC – Holding 6 lbs.
$29.24
12 in stock (can be backordered)

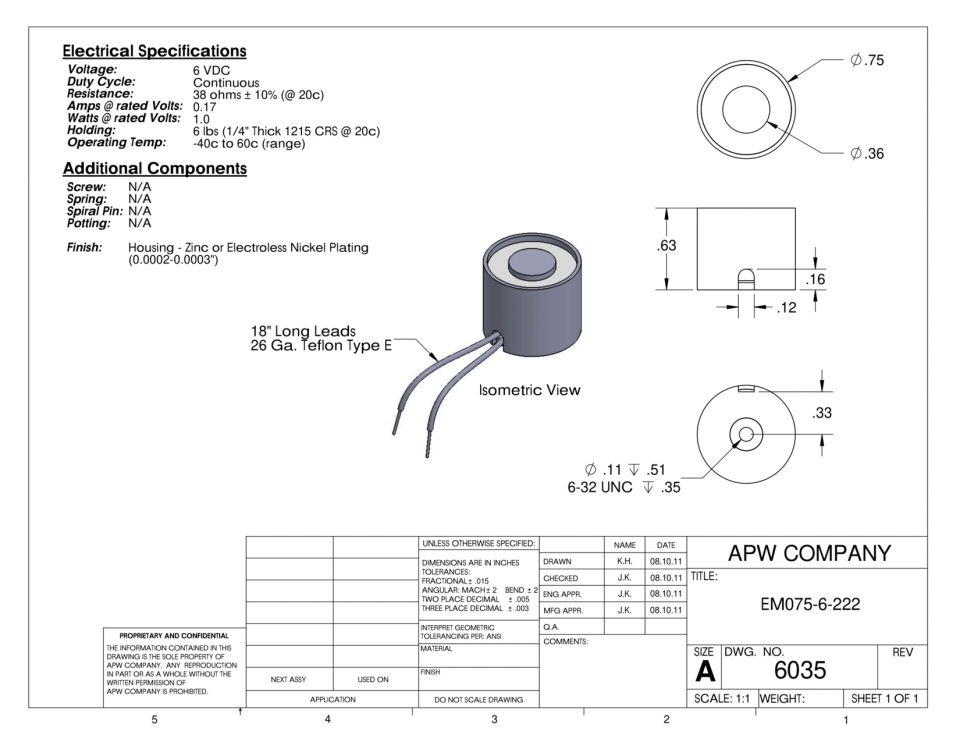

PRODUCT FILES: PDF SPECIFICATION 3-D FILE
Additional information
| Weight | 0.06 lbs |
|---|---|
| Dimensions | 0.75 × 0.75 × 0.62 in |
| Holding Force (Lbs.) (2) | 6 |
| Voltage | 6 |
| Current | DC |
| Duty | Continuous |
| Amps | 0.16 |
| Quick Release | No |
| Encapsulation | No |
| Anti-Rotation Pin | No |
| Mounting Option | Tapped Rear Threaded |
| Bolt Desc. or Thread | Female 6-32 |
| Mounting Screw Supplied (2) | No |
| Lead Wire Type (3) | TFE |
| Lead Wire Ga. | 26 |
| Lead Wire Length (in.) | 18 |
| High Temperature (500 f) | No |
| Magnetic Stainless (430FR) | No |
| Outer Diameter (in.) | 0.75 |
| Height (in.) 3 | 0.62 |
