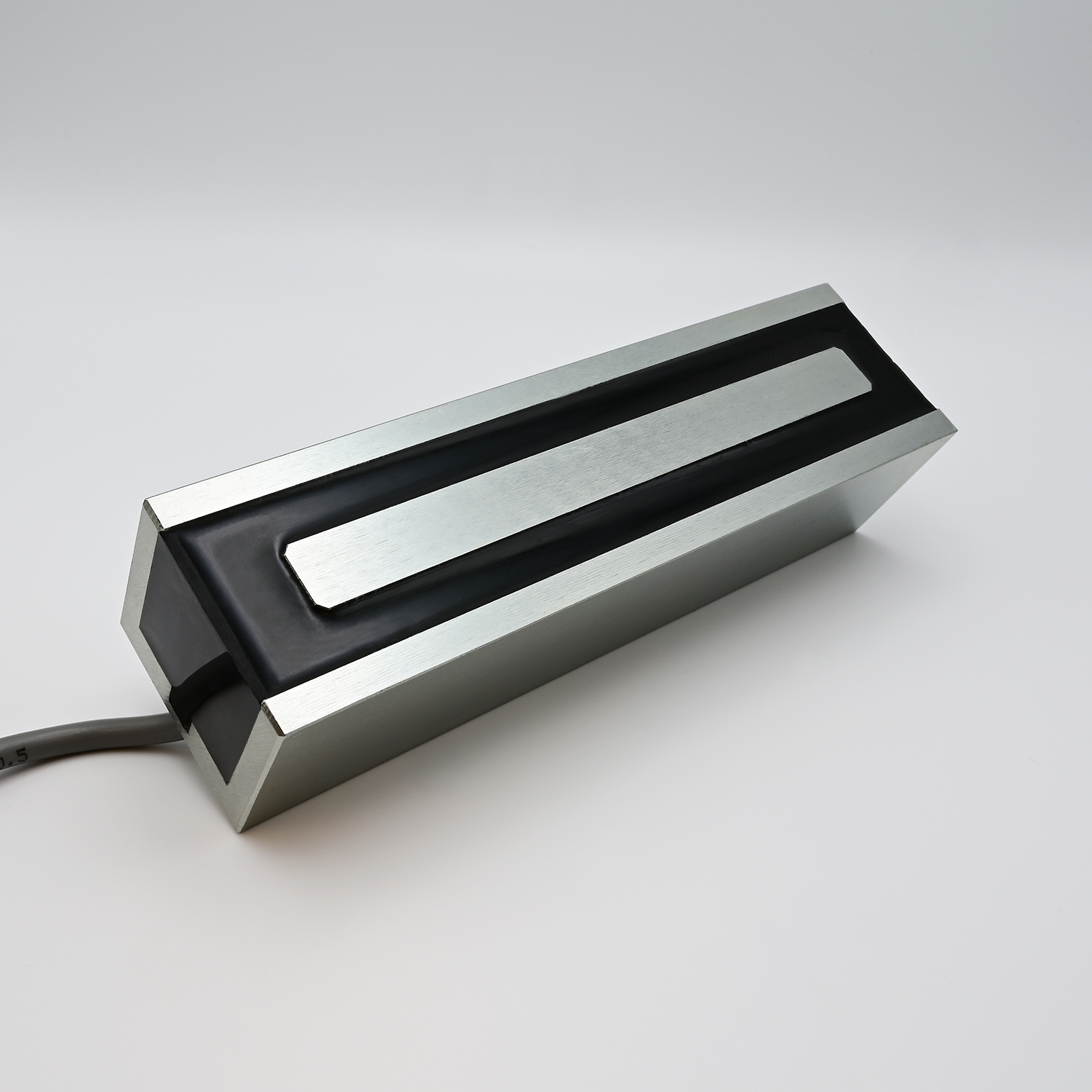

EMR-4035-150-24 is a high-quality rectangular electromagnet engineered to meet the rigorous demands of mechanical and electrical engineering applications. It produces an extremely strong magnetic field when energized with 24 volts DC, capable of holding up to an impressive 350 lbs. With a length of 150mm, it is suitable for a range of applications requiring a large holding capacity. This electromagnet is manufactured to the highest standards, ensuring consistent and reliable performance. Typical applications include but are not limited to lifting equipment, sorting machinery, and magnetic clamping systems. EMR-4035-150-24 is a dependable choice for any engineering project requiring a powerful and efficient electromagnet.
EMR-4035-100-24 Rectangular Electromagnet 100mm Length 24 volts DC
$150.98
EMR-4035-200-24 Rectangular Electromagnet 200mm Length 24 volts DC
$299.82
EMR-4035-150-24 Rectangular Electromagnet 150mm Length 24 volts DC
$276.96
19 in stock (can be backordered)

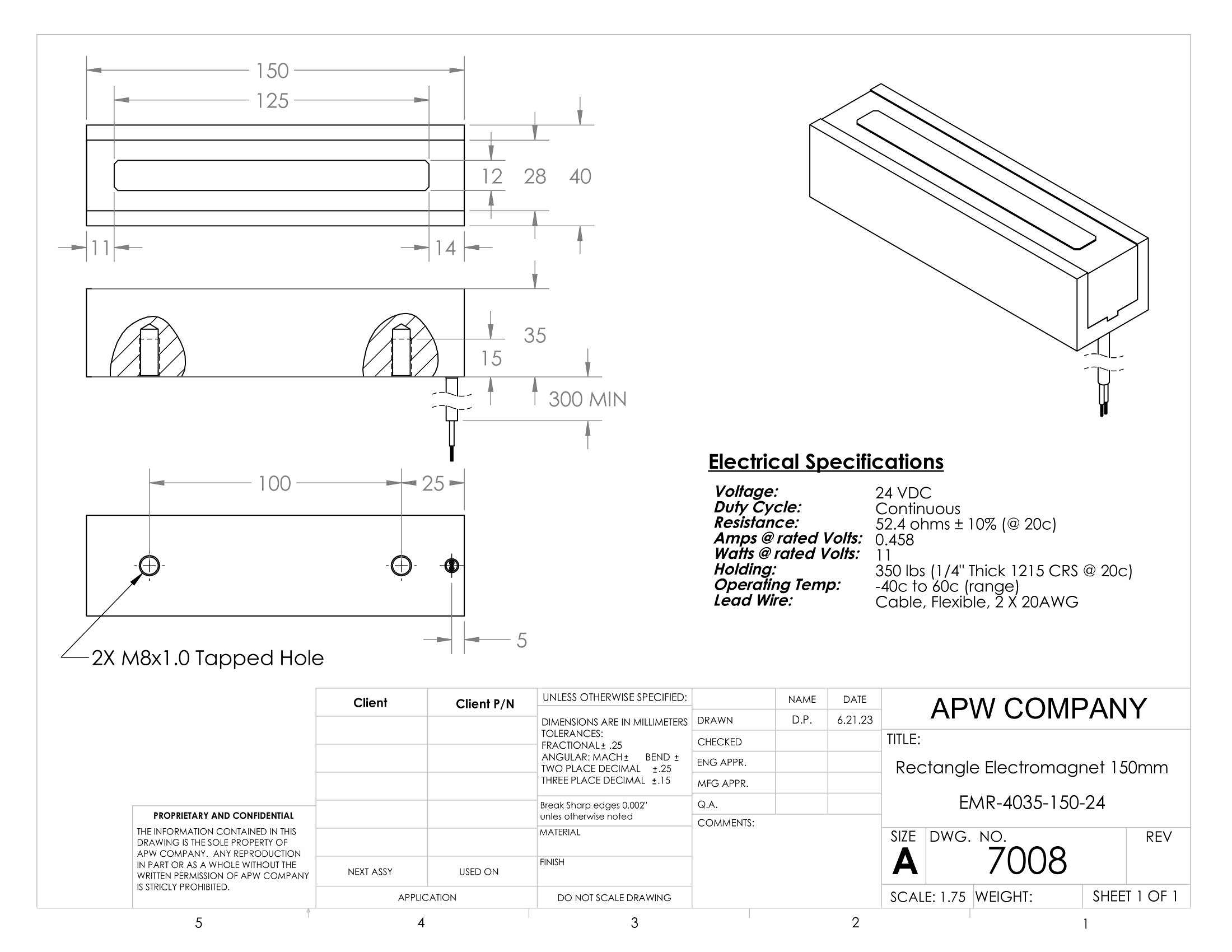

PRODUCT FILES: PDF SPECIFICATION 3-D FILE
Additional information
| Weight | 3 lbs |
|---|---|
| Dimensions | 6 × 1.6 × 1.4 in |
| Holding Force (Lbs.) (2) | 350 |
| Voltage | 24 |
| Current | DC |
| Duty | Continuous |
| Amps | .458 |
| Quick Release | No |
| Mounting Option | Tapped Rear Threaded |
| Bolt Desc. or Thread | Metric Tapped M8 |
| Lead Wire Type (3) | PVC Hook Up Wire |
| Lead Wire Ga. | 20 |
| Lead Wire Length (in.) | 300mm |
| High Temperature (500 f) | No |
| Height (in.) 3 | 1.38 |
| Length (in.) | 5.91 |
| Width (in.) | 1.58 |
