The EML32mm-24 Round Permanent Electromagnet is a high-quality and precision-made product designed to operate on 24 volts DC. With a diameter of 32 mm and a holding capacity of 40 lbs, this electromagnet is ideal for use in a range of applications, such as material handling, magnetic separation, and clamping. The product is manufactured with the highest level of precision and quality to ensure reliable performance and durability. It is an excellent choice for mechanical and electrical engineers seeking a robust and efficient solution for their electromagnetic needs, and will perform exceptionally well in various settings.
EML32mm-12 - Round Permanent Electromagnet 32 mm Dia. 12 volts DC - Holding 40 lbs.
$46.20
EML35mm-12 - Round Permanent Electromagnet 35 mm Dia. 12 volts DC - Holding 44.9 lbs.
$47.96
EML32mm-24 – Round Permanent Electromagnet 32 mm Dia. 24 volts DC – Holding 40 lbs.
$46.20
56 in stock (can be backordered)

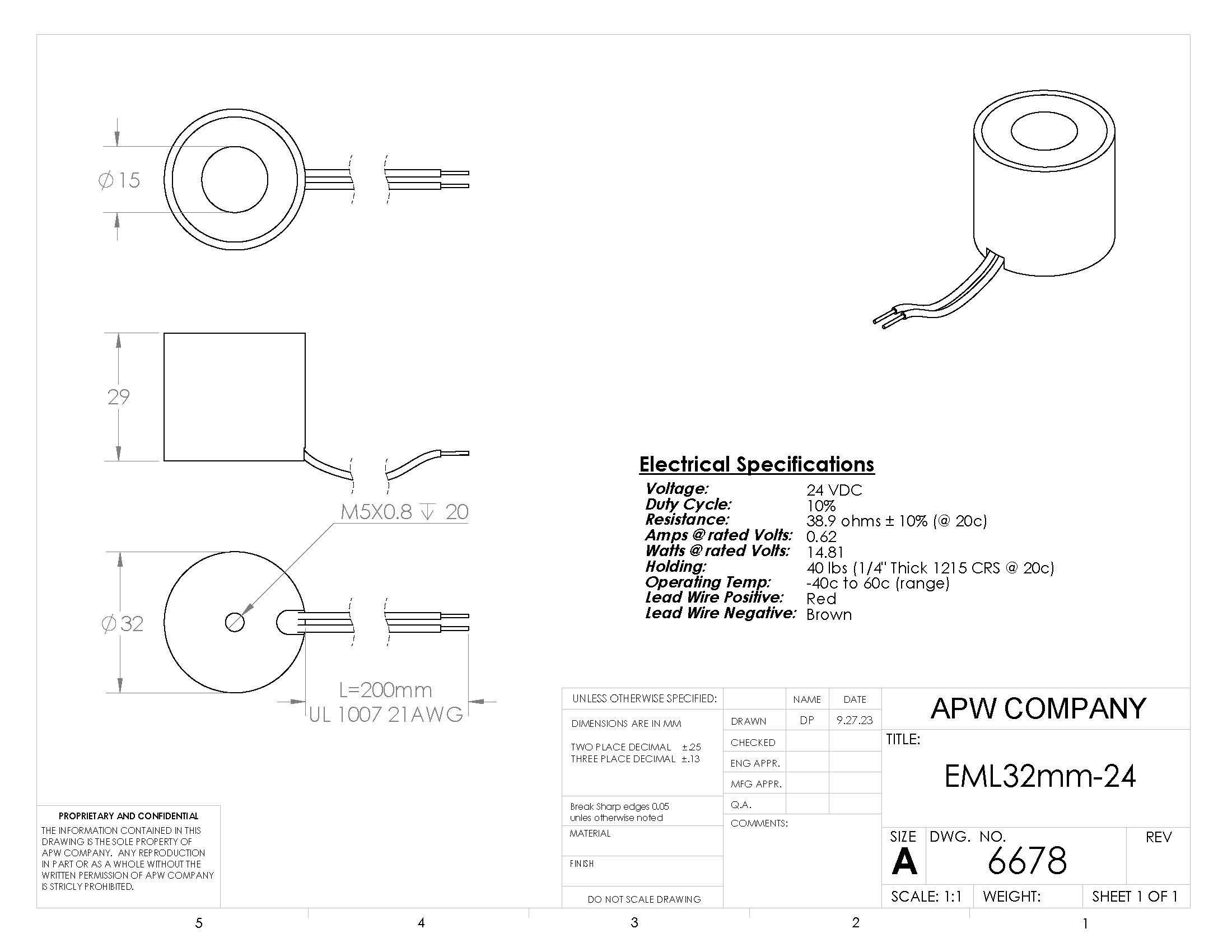

PRODUCT FILES: PDF SPECIFICATION 3-D FILE
Additional information
| Weight | 0.3 lbs |
|---|---|
| Dimensions | 1.14 × 1.26 × 1.26 in |
| Holding Force (Lbs.) (2) | 40 |
| Voltage | 24 |
| Amps | 0.62 |
| Current | DC |
| Duty | Intermittent |
| Encapsulation | Yes |
| Mounting Option | Tapped Rear Threaded |
| Bolt Desc. or Thread | Metric Tapped M5 |
| Mounting Screw Supplied (2) | No |
| Lead Wire Type (3) | UL 1007 |
| Lead Wire Ga. | 26 |
| Lead Wire Length (mm) | 200 |
| Outer Diameter (mm) | 32 |
