The EML20mm-24 Round Permanent Electromagnet is a high-quality, precision-made product designed to operate on 24 volts DC. With a diameter of 20 mm and a holding capacity of 10.12 lbs, this electromagnet is ideal for use in a range of applications, such as material handling, magnetic separation, and clamping. The product is manufactured with the highest level of precision and quality to ensure reliable performance and durability. It is an excellent choice for mechanical and electrical engineers seeking a robust and efficient solution for their electromagnetic needs, and will perform exceptionally well in various settings.
EML20mm-12 - Round Permanent Electromagnet 20 mm Dia. 12 volts DC - Holding 10.12 lbs.
$28.60
EML25mm-12 - Round Permanent Electromagnet 25 mm Dia. 12 volts DC - Holding 27 lbs.
$39.16

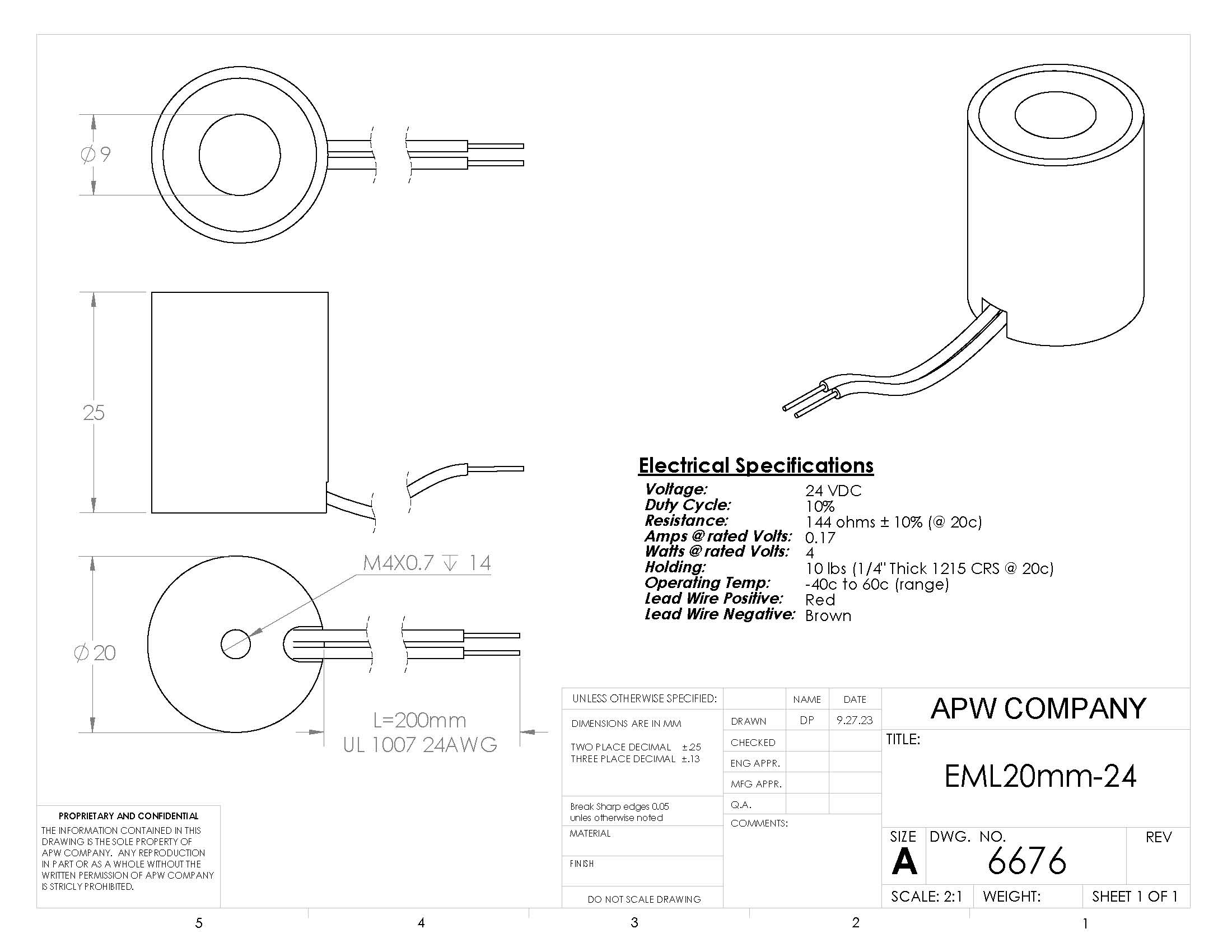

EML20mm-24 – Round Permanent Electromagnet 20 mm Dia. 24 volts DC – Holding 10.12 lbs.
$28.60
113 in stock (can be backordered)
PRODUCT FILES: PDF SPECIFICATION 3-D FILE
Additional information
| Weight | 0.11 lbs |
|---|---|
| Dimensions | 1 × 0.79 × 0.79 in |
| Holding Force (Lbs.) (2) | 10.12 |
| Voltage | 24 |
| Amps | 0.17 |
| Current | DC |
| Duty | Intermittent |
| Encapsulation | Yes |
| Mounting Option | Tapped Rear Threaded |
| Bolt Desc. or Thread | Metric Tapped M4 |
| Mounting Screw Supplied (2) | No |
| Lead Wire Type (3) | UL 1007 |
| Lead Wire Ga. | 26 |
| Lead Wire Length (mm) | 200 |
| Length (mm) | 25 |
| Outer Diameter (mm) | 20 |
