The EML10mm-24 Round Permanent Electromagnet is a high-quality, precision-made product designed to operate on 24 volts DC. With a diameter of 10 mm and a holding capacity of 0.67 lbs, this electromagnet is ideal for use in applications such as magnetic separation, positioning, and clamping. The product is manufactured with the highest level of precision and quality to ensure reliable performance and durability. It is an excellent choice for mechanical and electrical engineers looking for a robust and efficient solution for their electromagnetic needs, and will perform exceptionally well in a variety of settings.
EML10mm-24 – Round Permanent Electromagnet 10 mm Dia. 24 volts DC – Holding 0.67 lbs.
$31.68
25 in stock (can be backordered)

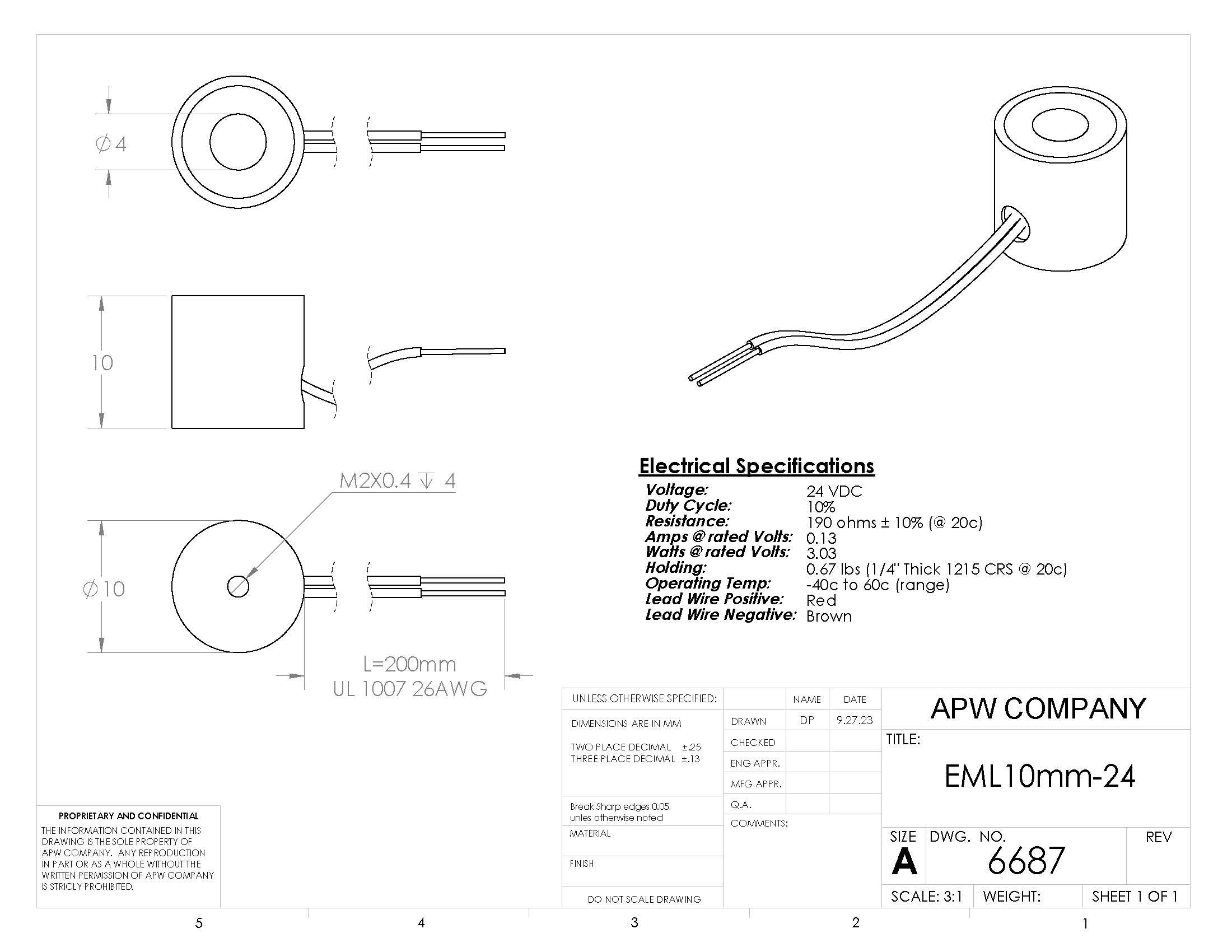

PRODUCT FILES: PDF SPECIFICATION 3-D FILE
Additional information
| Weight | 0.02 lbs |
|---|---|
| Dimensions | 0.4 × 0.39 × 0.39 in |
| Holding Force (Lbs.) (2) | 0.67 |
| Voltage | 24 |
| Amps | 0.13 |
| Current | DC |
| Duty | Intermittent |
| Encapsulation | Yes |
| Mounting Option | Tapped Rear Threaded |
| Bolt Desc. or Thread | Metric Tapped M2 |
| Mounting Screw Supplied (2) | No |
| Lead Wire Type (3) | UL 1007 |
| Lead Wire Ga. | 26 |
| Lead Wire Length (mm) | 200 |
| Length (mm) | 10 |
| Outer Diameter (mm) | 10 |
