The EM350-12-222 is a round electromagnet with a 3.5 inch diameter, designed to hold up to 600 lbs. when powered by 12 volts DC. This high-quality, precision-made product is suitable for various applications in which electromagnets are used, such as lifting and holding metal objects, sorting and separating ferrous materials, and magnetic locks. The device is designed with efficiency in mind, delivering strong magnetic force while consuming minimal power. It is a reliable and durable solution for professionals in the mechanical and electrical engineering fields.
EM350-24-222 - Round Electromagnet 3.5 inch Dia. 24 volts DC - Holding 600 lbs.
$129.25
EM350-115ac-222 - Round Electromagnet 3.5 inch Dia. 115 volts AC - Holding 600 lbs.
$129.25
EM350-12-222 – Round Electromagnet 3.5 inch Dia. 12 volts DC – Holding 600 lbs.
$129.25
Available on backorder

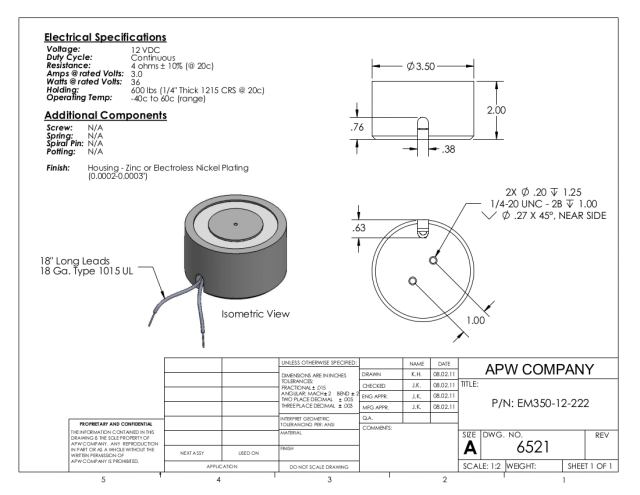

PRODUCT FILES: PDF SPECIFICATION 3-D FILE
Additional information
| Weight | 4.4 lbs |
|---|---|
| Dimensions | 3.5 × 3.5 × 2 in |
| Holding Force (Lbs.) (2) | 600 |
| Voltage | 12 |
| Current | DC |
| Duty | Continuous |
| Amps | 3 |
| Quick Release | No |
| Encapsulation | No |
| Anti-Rotation Pin | No |
| Mounting Option | Tapped Rear Threaded |
| Bolt Desc. or Thread | Tapped 1/4-20 2 pl. |
| Mounting Screw Supplied (2) | No |
| Lead Wire Type (3) | UL |
| Lead Wire Ga. | 18 |
| Lead Wire Length (in.) | 18 |
| High Temperature (500 f) | No |
| Magnetic Stainless (430FR) | No |
| Outer Diameter (in.) | 3.5 |
| Height (in.) 3 | 2 |
