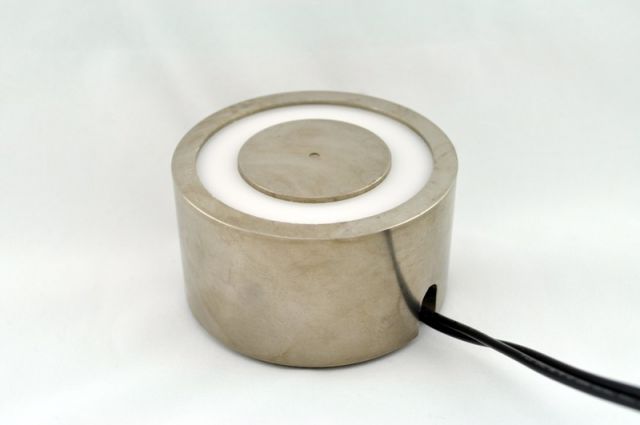

EM350-115ac-212 is a high-quality round electromagnet designed for demanding mechanical and electrical engineering applications. Its 3.5-inch diameter produces a powerful magnetic field when supplied with 115 volts AC, capable of holding up to 600 lbs. This electromagnet is manufactured with meticulous attention to detail, ensuring reliable and consistent performance. Its applications include but are not limited to lifting equipment, sorting machinery, and magnetic clamping systems. EM350-115ac-212 is an ideal choice for engineering projects requiring a high-quality and efficient electromagnet for heavy-duty operations at AC voltage levels with a large holding capacity.
EM350-115ac-222 - Round Electromagnet 3.5 inch Dia. 115 volts AC - Holding 600 lbs.
$129.25
EM400-230ac-212 - Round Electromagnet 4 inch Dia. 230 volts AC - Holding 800 lbs.
$148.50
EM350-115ac-212 – Round Electromagnet 3.5 inch Dia. 115AC volts AC – Holding 600 lbs.
$129.25
Available on backorder
Additional information
| Weight | 4.4 lbs |
|---|---|
| Dimensions | 3.5 × 3.5 × 2 in |
| Holding Force (Lbs.) (2) | 600 |
| Voltage | 115 |
| Current | AC |
| Duty | Continuous |
| Amps | 0.58 |
| Quick Release | No |
| Encapsulation | Yes |
| Anti-Rotation Pin | No |
| Mounting Option | Tapped Rear Threaded |
| Bolt Desc. or Thread | Tapped 1/4-20 2 pl. |
| Mounting Screw Supplied (2) | No |
| Lead Wire Type (3) | UL |
| Lead Wire Ga. | 18 |
| Lead Wire Length (in.) | 18 |
| High Temperature (500 f) | No |
| Magnetic Stainless (430FR) | No |
| Outer Diameter (in.) | 3.5 |
| Height (in.) 3 | 2 |
